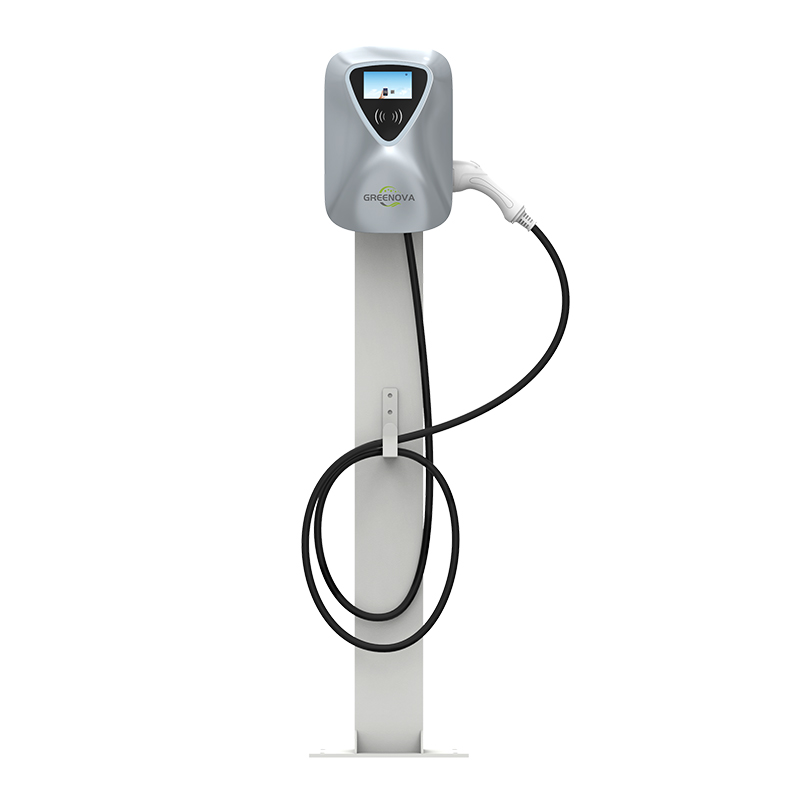

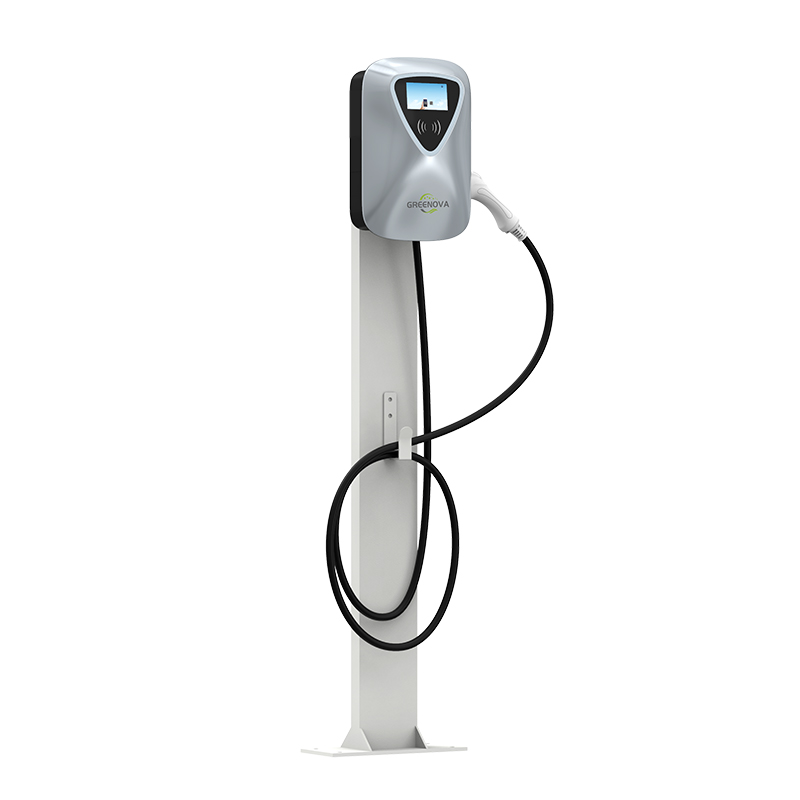

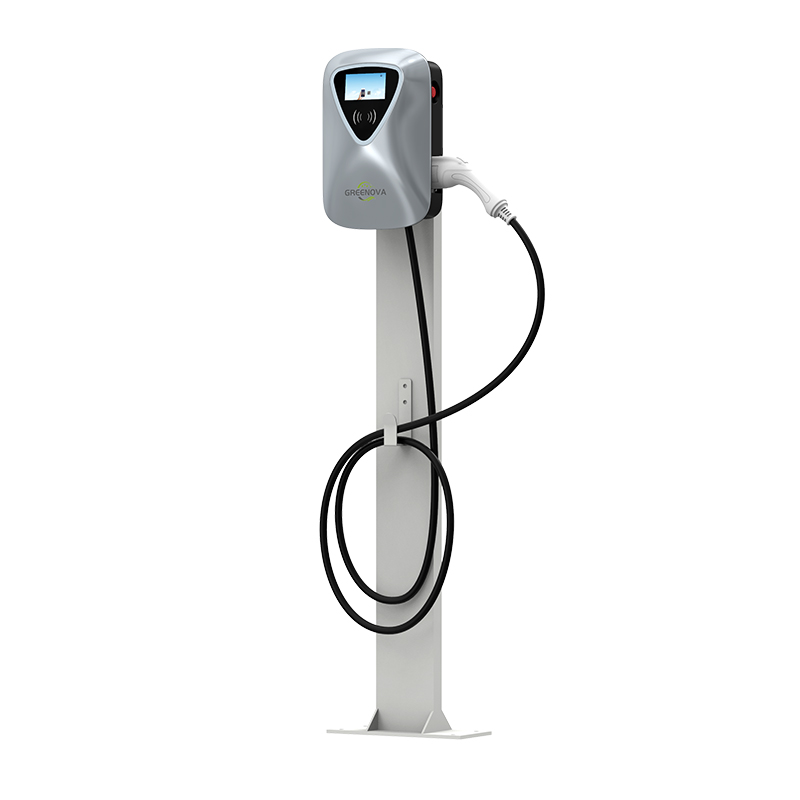

AC 7KW Wallbox Column Type EV Charger
● Delicate appearance, simple operation, convenient installation;
● High efficiency, reliable and stable performance;
● Friendly interaction interface, 4.3-inch color touch screen(optional);
● Home charger is the single-phase 7kW AC charger with maximum 32A output current, specially designed for private use.
● Support type1,type2 ,Chademo,GB/T connector(or socket)optional;

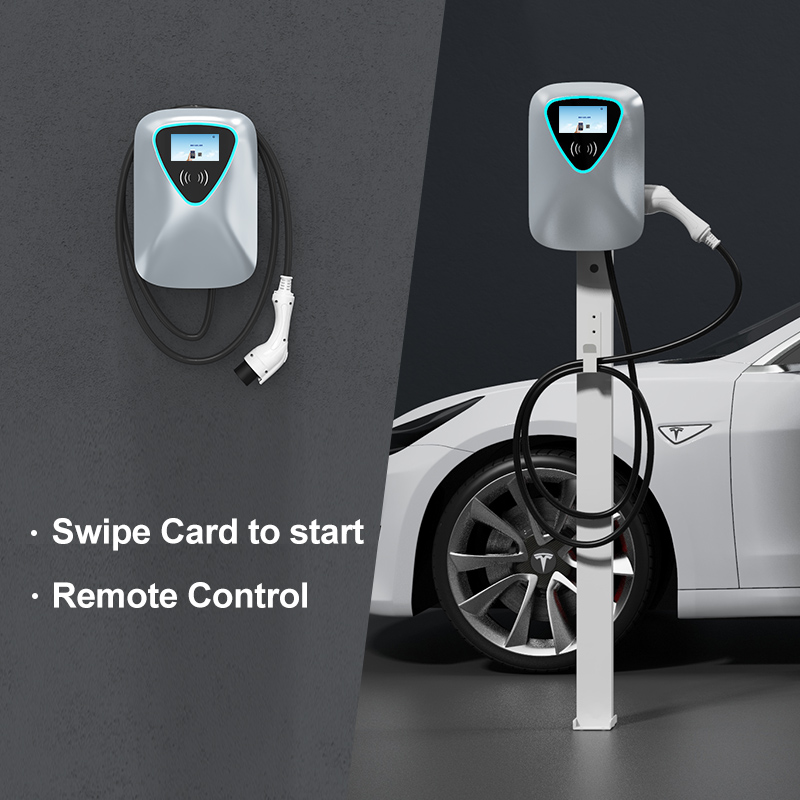

● The charger is equipped with RFID card function for ID authentication to prevent theft of electricity. Only the user with RFID card has access to the charging.
● Adopt flame retardant ABS housing
● Logo,color ,functions ects are customizable
● CE ROHS certified
- Description
- Technical Data
- Download
- Video
Model | GNS1-ENC/AC007 | GNS1-ENCAC011 | GNS1-ENCAC022 | |
Power Input | Input Type | 1-Phase | 3-Phase | 3-Phase |
Input Wiring Scheme | 1P+N+PE | 3P+N+PE | 3P+N+PE | |
Rated Voltage | 220VAC±15%-Euro 240VAC±15%-US | 380VAC±15%-Euro 240VAC±15%-US | AC380V±15% | |
Grid Frequency | 50Hz or 60Hz | |||
Power Output | Output Voltage | 220VAC±15%-Euro 240VAC±15%-US | 380VAC±15%-Euro 240VAC±15%-US | AC380V±15% |
Maximum Current | 0-32A | 0-16A | 0-32A | |
Rated Power | 7KW | 11KW | 22KW | |

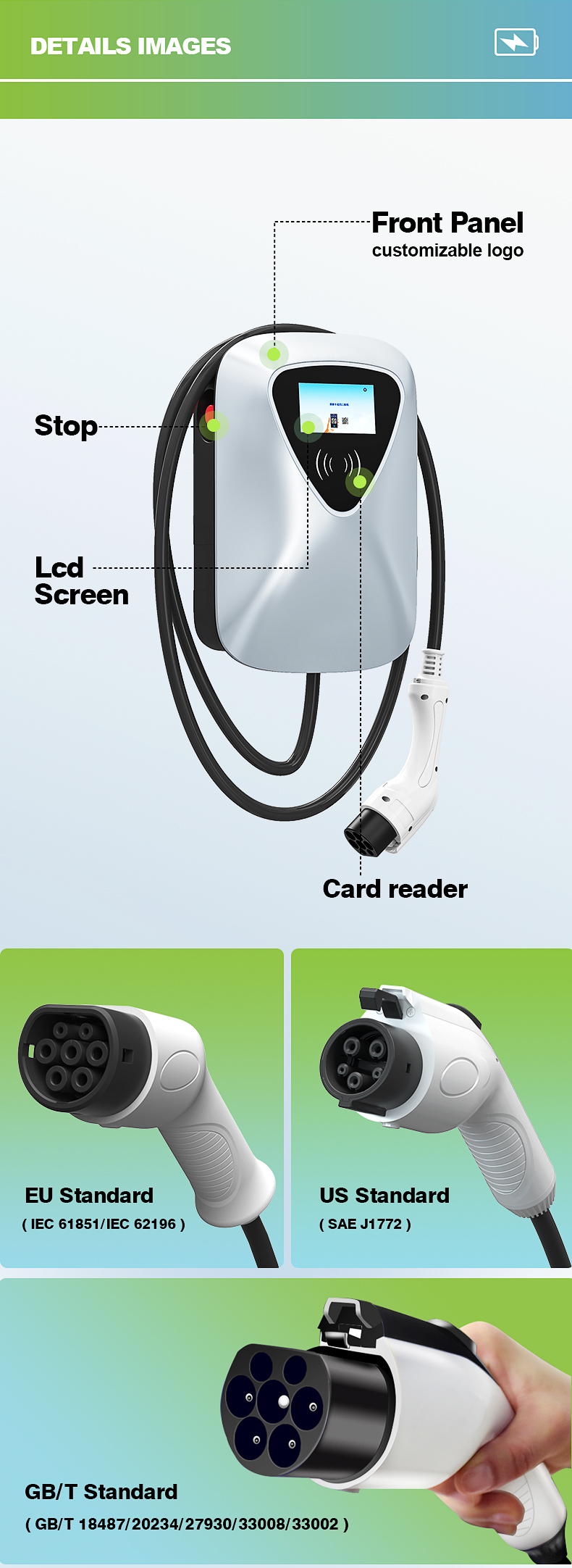

User Interface | Charge Connector | Type1 ,Type 2 ,GB/T or ChadeMo for optional | ||
Cable Length | 5m or Optional | |||
LED Indicator | Green/Blue/Red | |||
LCD Display | 4.3 Inch Touch Color Screen(Optional) | |||
RFID Reader | ISO/IEC 14443 RFID Card Reader | |||
Start Mode | Plug&Charge/RFID Card/APP | |||

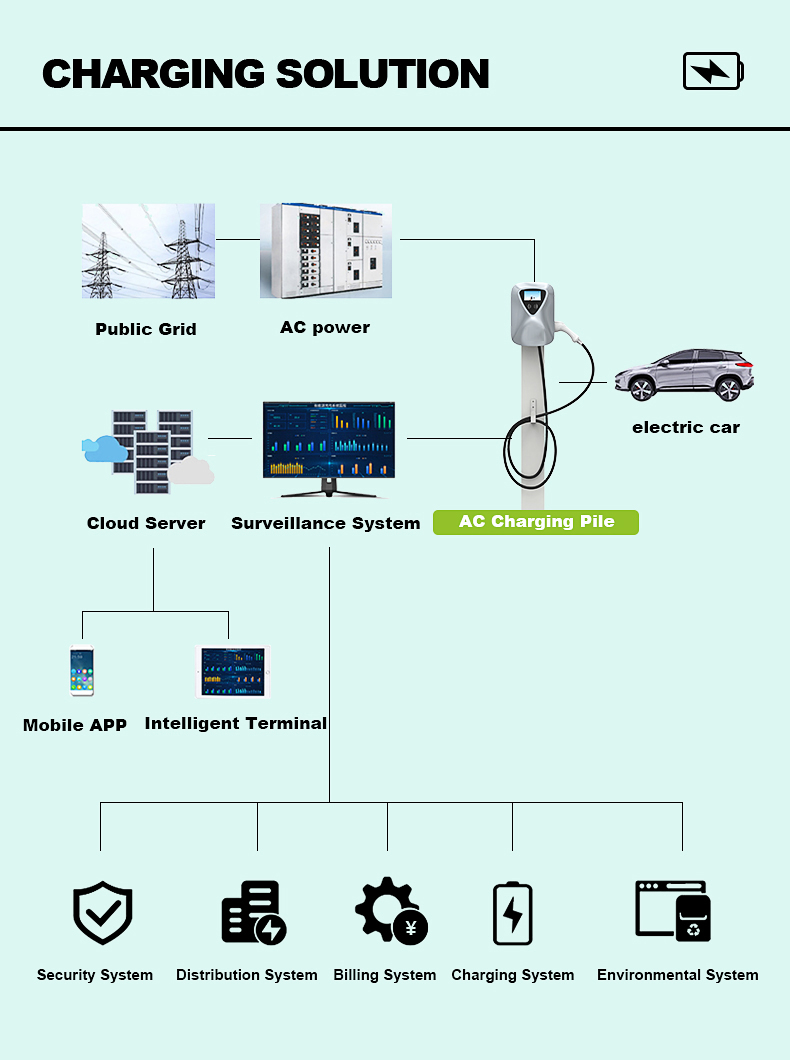

Communication | Backend | Bluetooth / Wi-Fi /Cellular(Optional) / Ethernet(Optional) | ||
Charging protocol | OCPP-1.6J | |||
Safety and Certification | Energy Metering | Embedded Meter Circuit Component With 1% accuracy | ||
Residual Current Device | DC 6mA+Type A AC 30mA | |||
Ingress Protection | IP54 | |||
Impact Protection | IK10 | |||
Cooling method | Natural Cooling | |||
Electrical Protection | Over/Under Voltage Protection,Over Current Protection, Short Circuit protection, Over/Under Temperature Protection,Lightning Protection,Ground Protection | |||
Certification | CE Rosh | |||
Certification and Conformity | IEC61851-1,IEC62196-1/-2,SAE J1772 | |||

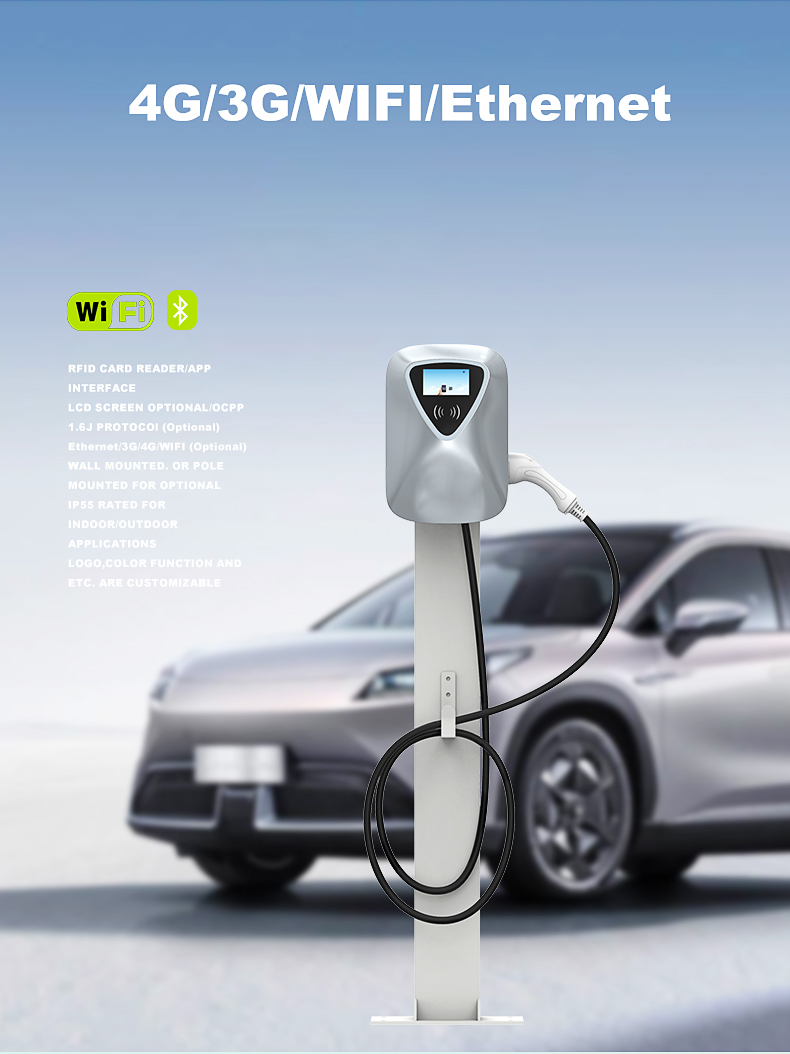

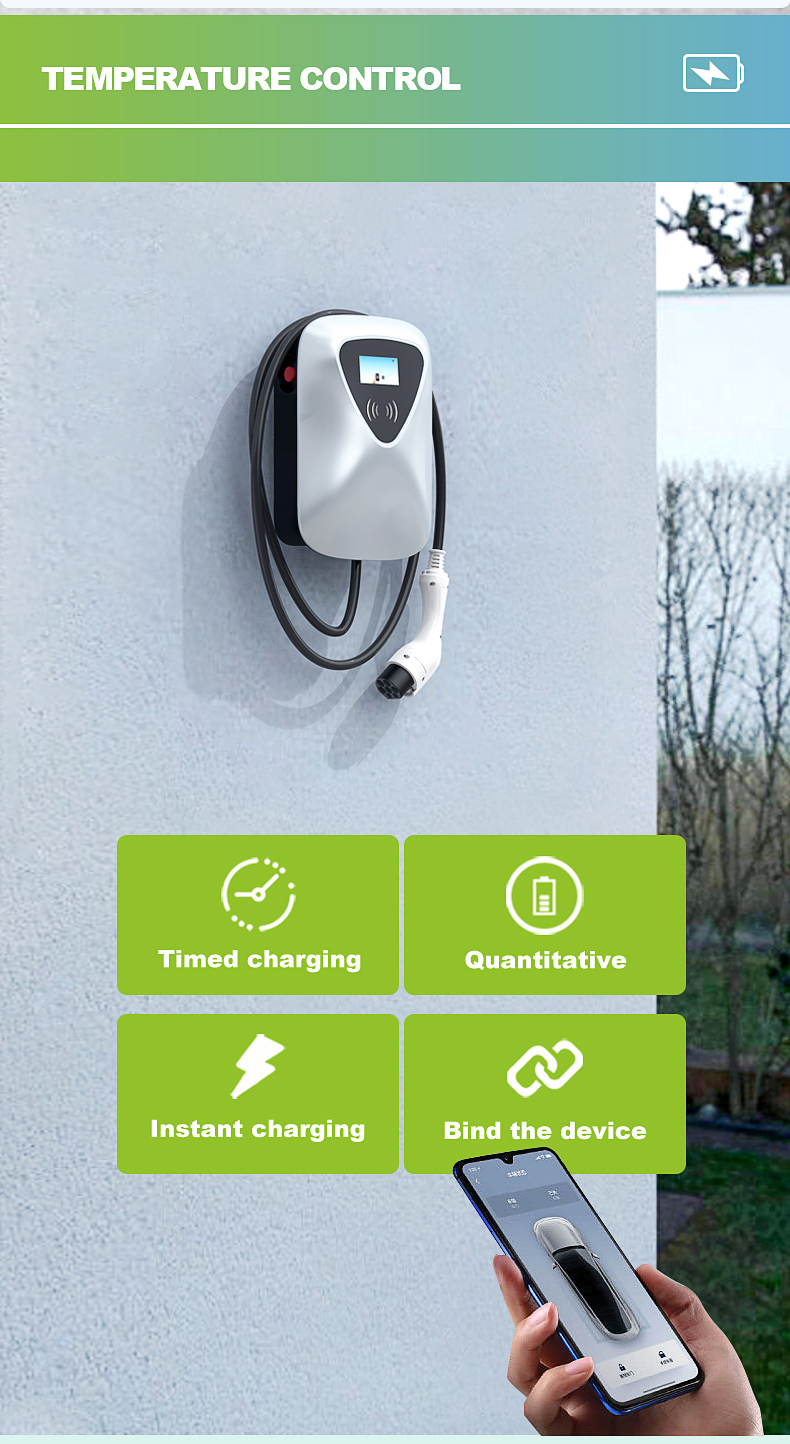

Environment | Mounting | Wall-mount/Pole-mount | ||
Storage Temperature | -40℃ - +85℃ | |||
Operating Temperature | -30℃ - +50℃ | |||
Max. Operating Humidity | 0-95%，Non-condensing | |||
Max. operating altitude | 2000m | |||

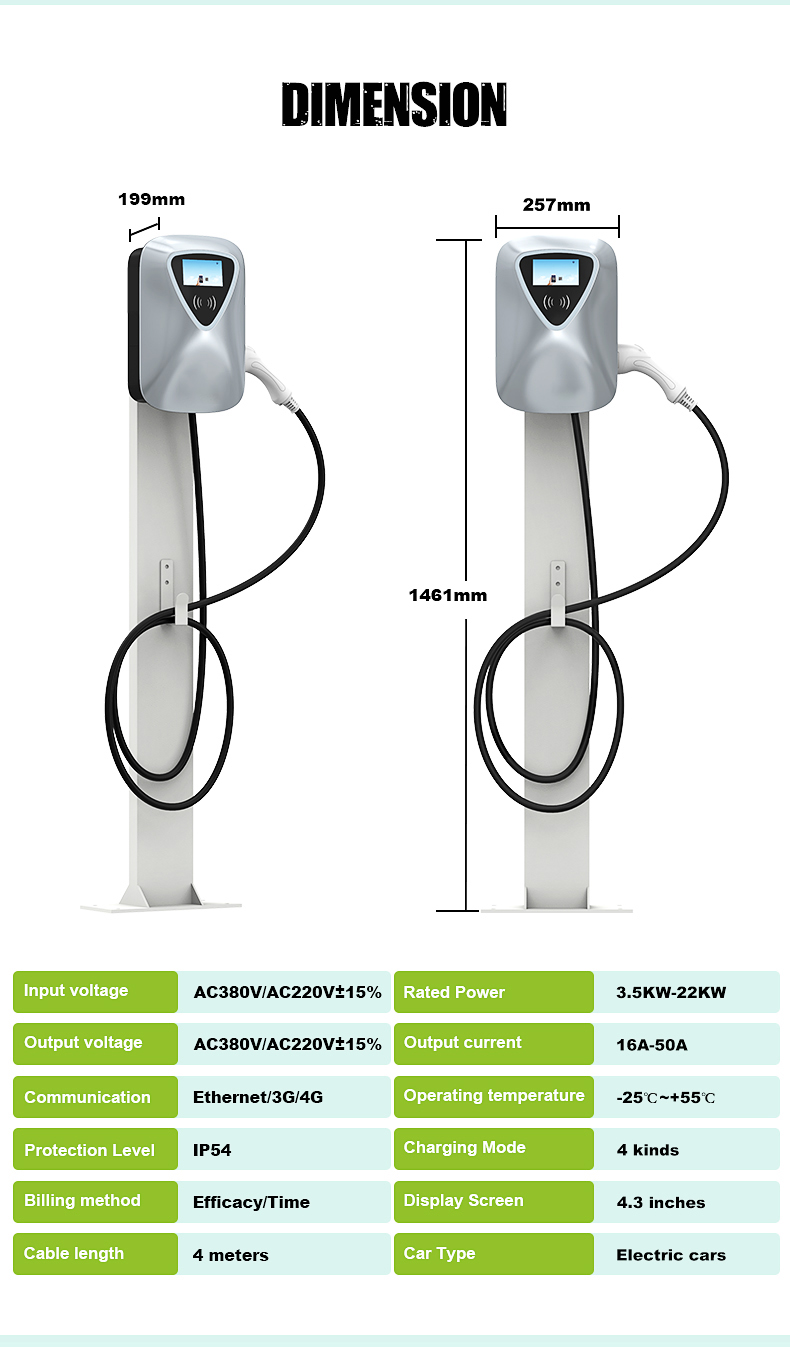

Mechanical | Product Dimension | 348mm*258mm*165mm（W*D*H） | ||
Package Dimension | 412mm*302mm*252mm（W*D*H） | |||
Weight | 4kg(Net ) / 14kg(Gross) | |||
Accessory | Cable Holder,Pedestal(Optional) | |||
