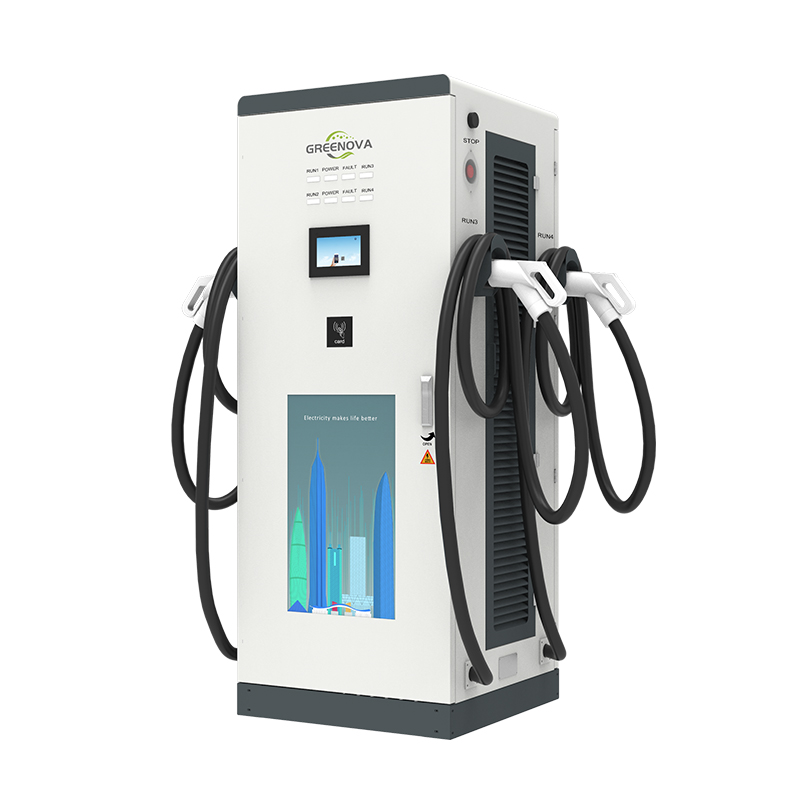

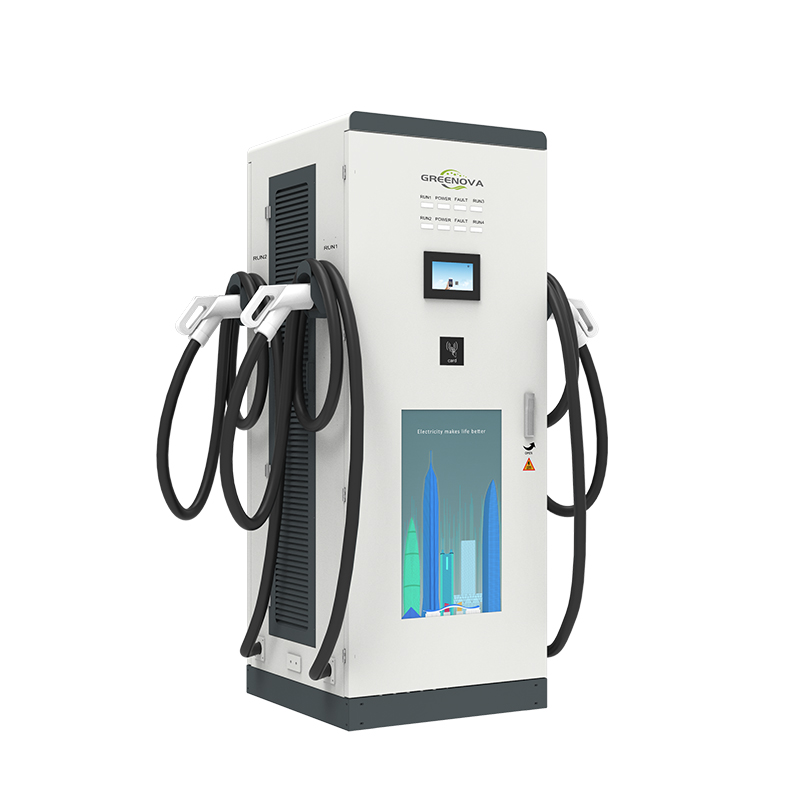

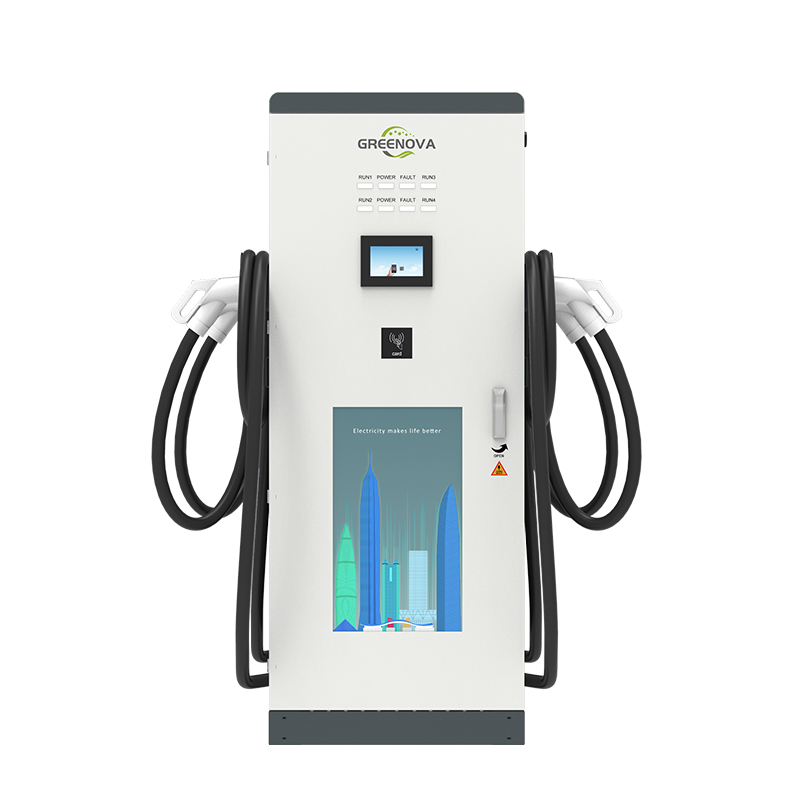

160KW180KW 240KW DC Fast Chargers Electric Vehicle Charging OCPP 1.6J RFID Card
● Simple operation, convenient installation
● High efficiency, reliable and stable performance
● Friendly interaction interface, 7inch color touch screen

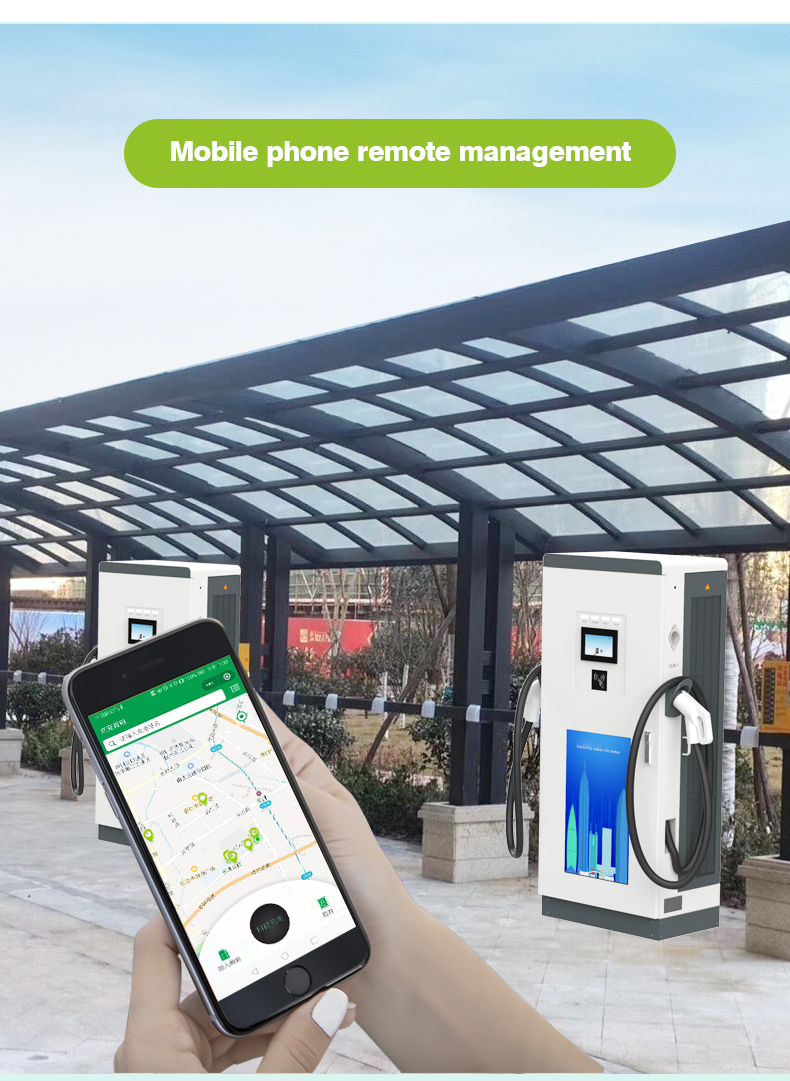

● Support multiple modes of charging, operation management and payment
● Support 3G/4G, Ethernet or wireless telecommunication
● Support RFID Card/OCPP 1.6J (optional)

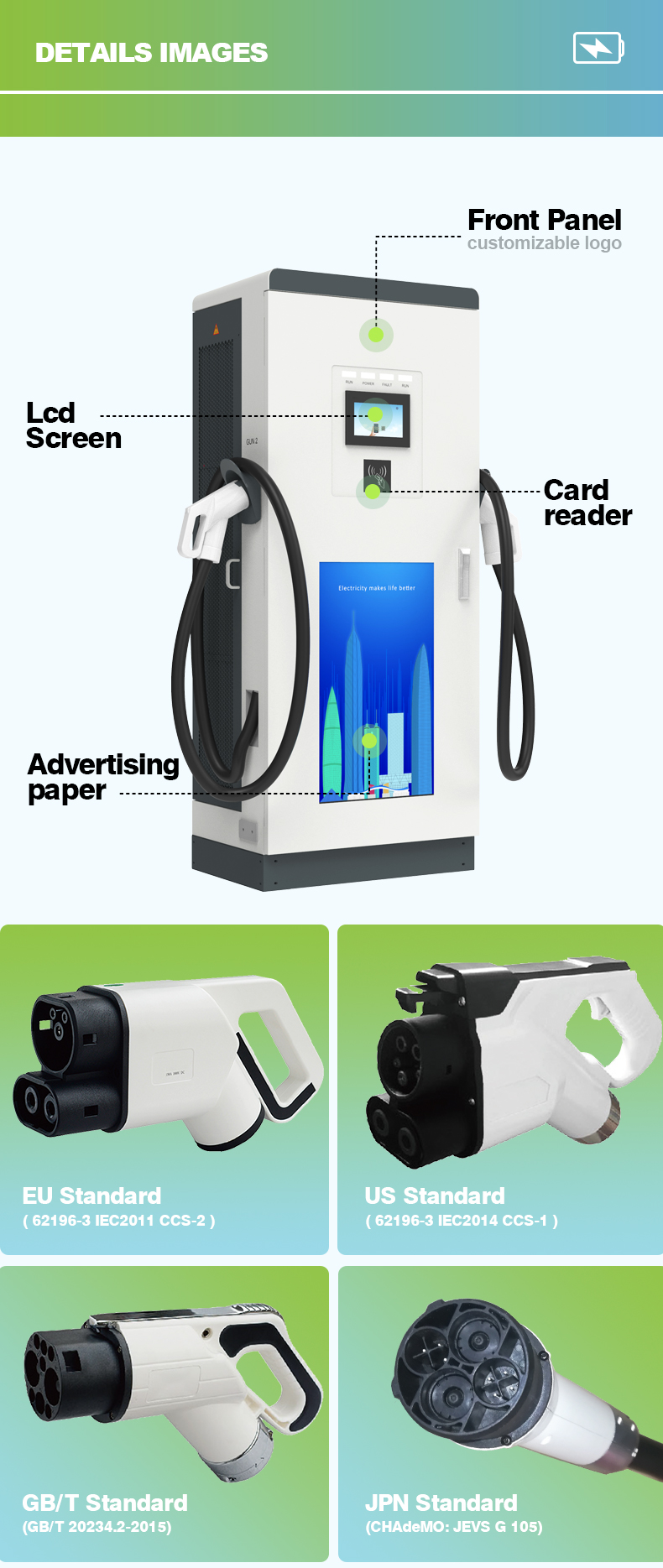

● Support CCS-2/CCS-1/CHAdeMO/GB/T connector(or Socket)optional
● Protection Grade: IP54 ,IK10
● Support online data upgrade
● Fully adapting to all electric vehicles in the market
● Logo,color ,function ects can be customizable
●CE ,ROSH Certified
- Description
- Technical Data
- Download
- Video
Model | GN-ENCDC160K | GN-ENCDC180K | GN-ENCDC240K | |||
Power Input | Input Type | 3-Phase | ||||
Input Wiring Scheme | 3P+N+PE | |||||
Rated Voltage | AC380V±15% | |||||
Min. Power Factor | ≥0.99(50% load above) | |||||
Grid Frequency | 50Hz or 60Hz | |||||
Power Output | Output Voltage | DC 200V~1000V | ||||
Maximum Current | 0-200A | |||||
Rated Power | 160KW | 180KW | 240KW | |||
User Interface | Charge Connector | CCS1 ,CCS2 ,GB/T or ChadeMo for optional | ||||
Cable Length | 5m or Optional | |||||
LED Indicator | Green/Blue/Red | |||||
LCD Display | 7 Inch Touch Color Screen(Optional) | |||||
RFID Reader | ISO/IEC 14443 RFID Card Reader | |||||
Start Mode | Plug&Charge/RFID Card/APP | |||||
Communication | Backend | Bluetooth / Wi-Fi /Cellular(Optional) / Ethernet(Optional) | ||||
Charging protocol | OCPP-1.6J | |||||
Safety and Certification | Energy Metering | Embedded Meter Circuit Component With 1% accuracy | ||||
Residual Current Device | DC 6mA+Type A AC 30mA | |||||
Ingress Protection | IP54 | |||||
Impact Protection | IK10 | |||||
Cooling method | Air Cooling | |||||
Electrical Protection | Over/Under Voltage Protection,Over Current Protection, Short Circuit protection, Over/Under Temperature Protection,Lightning Protection,Ground Protection | |||||
Certification | CE Rosh | |||||
Certification and Conformity | IEC61851-1,IEC62196-1/-2,SAE J1772 | |||||
Environment | Mounting | Floor Mount | ||||
Storage Temperature | -40℃ - +85℃ | |||||
Operating Temperature | -30℃ - +50℃ | |||||
Max. Operating Humidity | 0-95%，Non-condensing | |||||
Max. operating altitude | 2000m | |||||

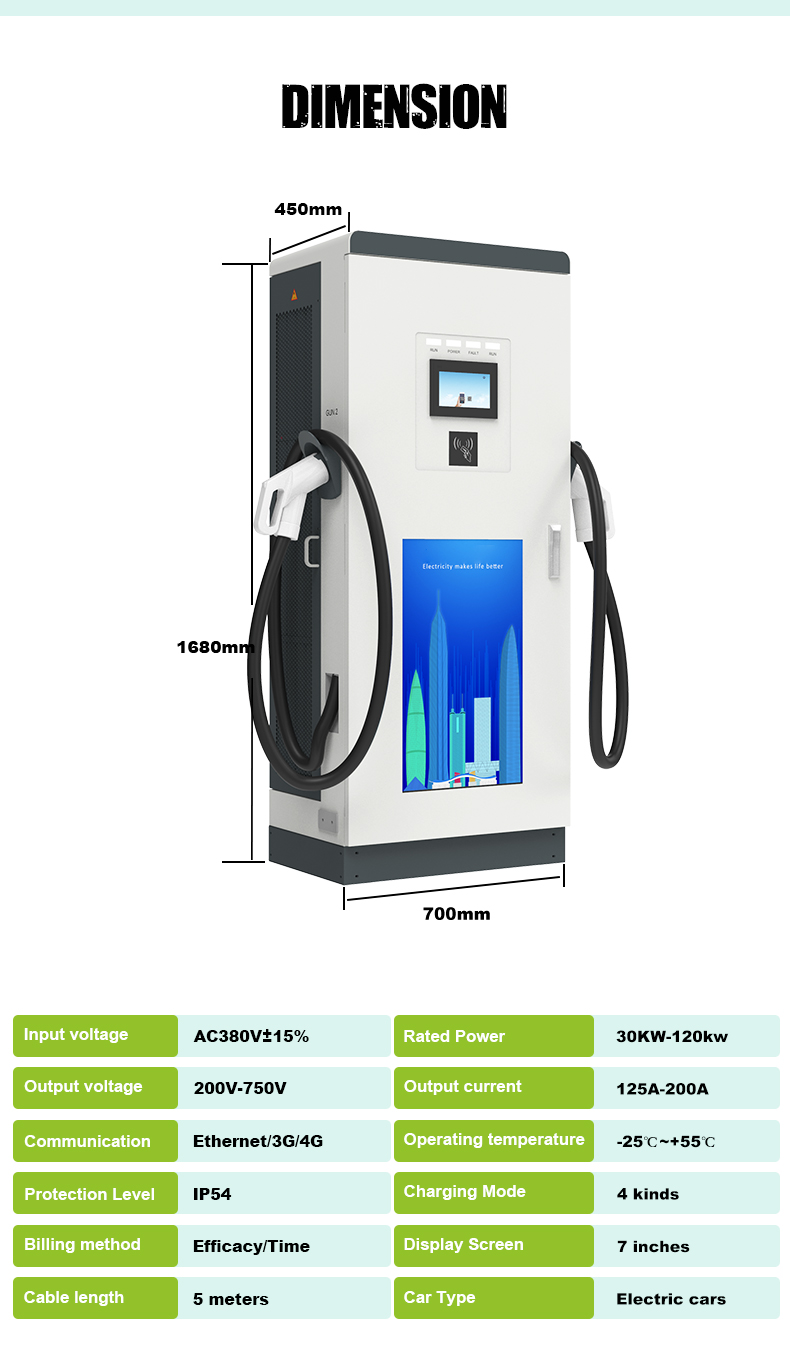

Mechanical | Product Dimension | 750mm*565mm*1806mm（W*D*H） | ||||
Package Dimension | 1050mm*685mm*1960mm（W*D*H） | |||||
Number of guns | 2/3/4 | |||||
Accessory | Cable Holder,Pedestal(Optional) | |||||
