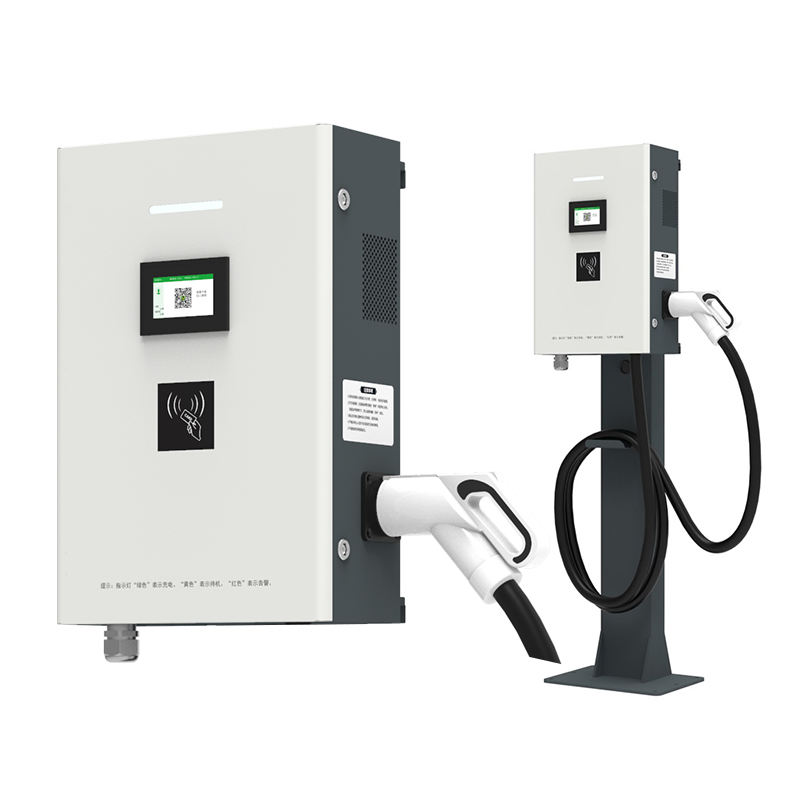

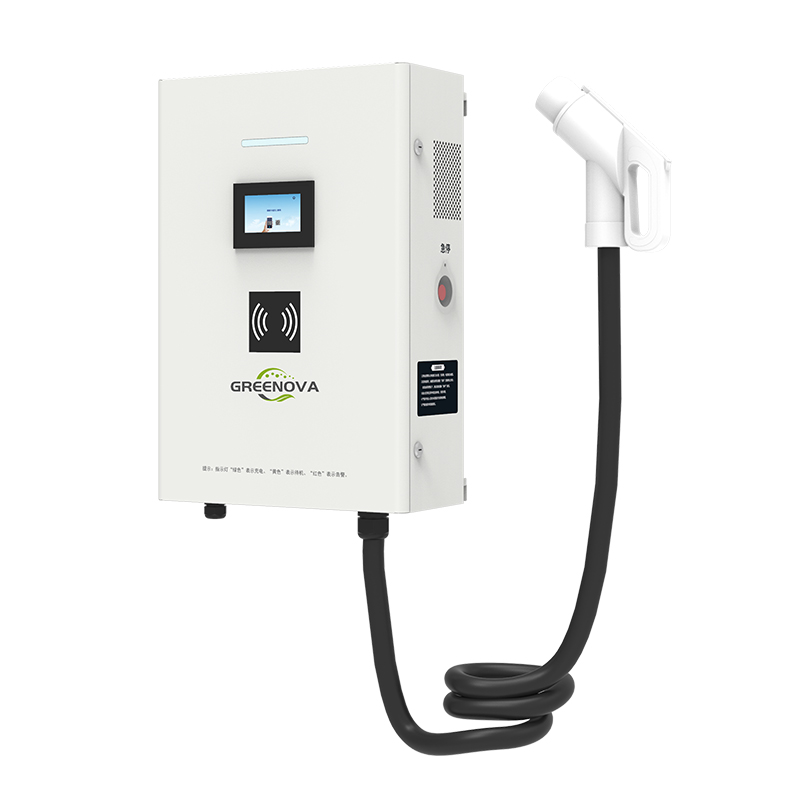

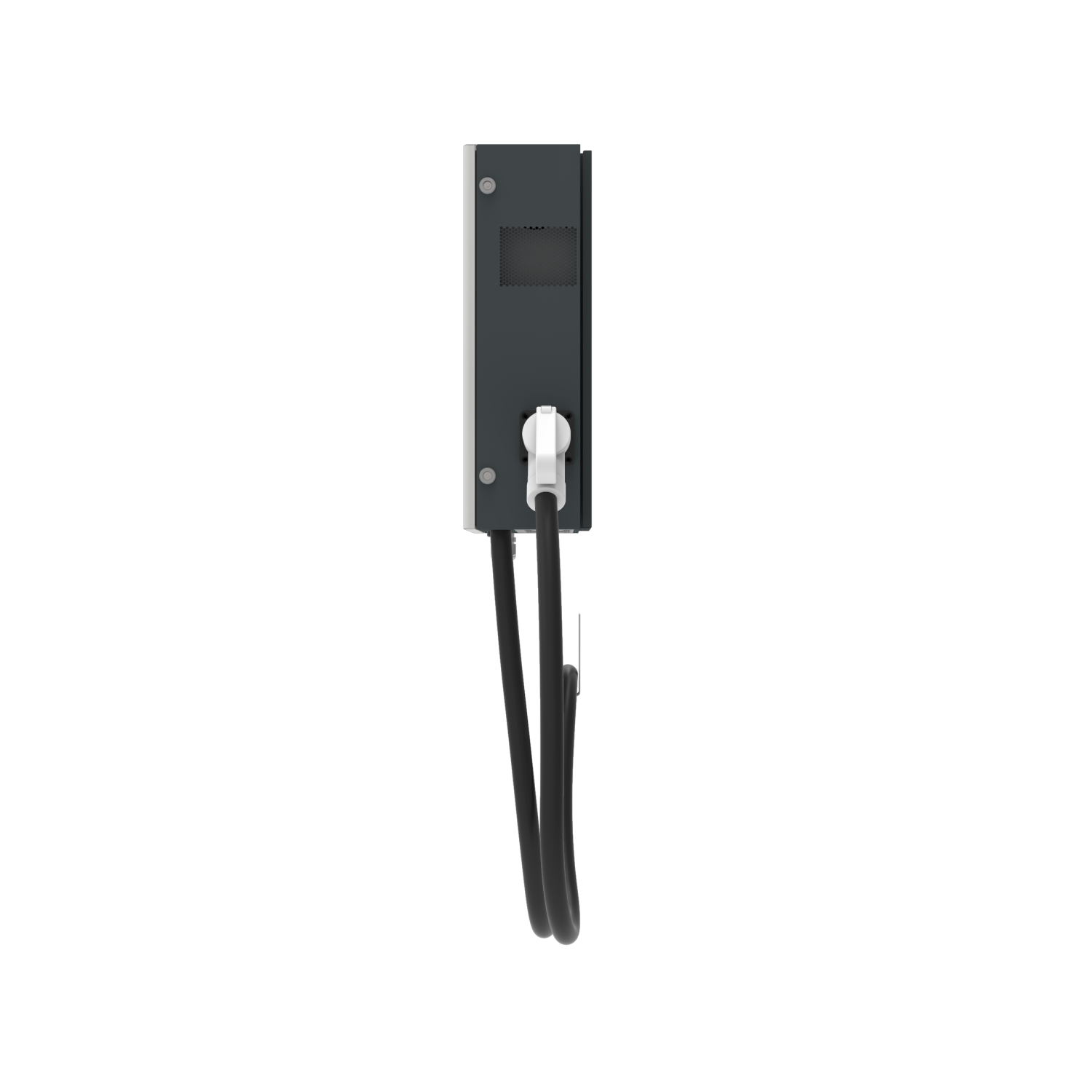

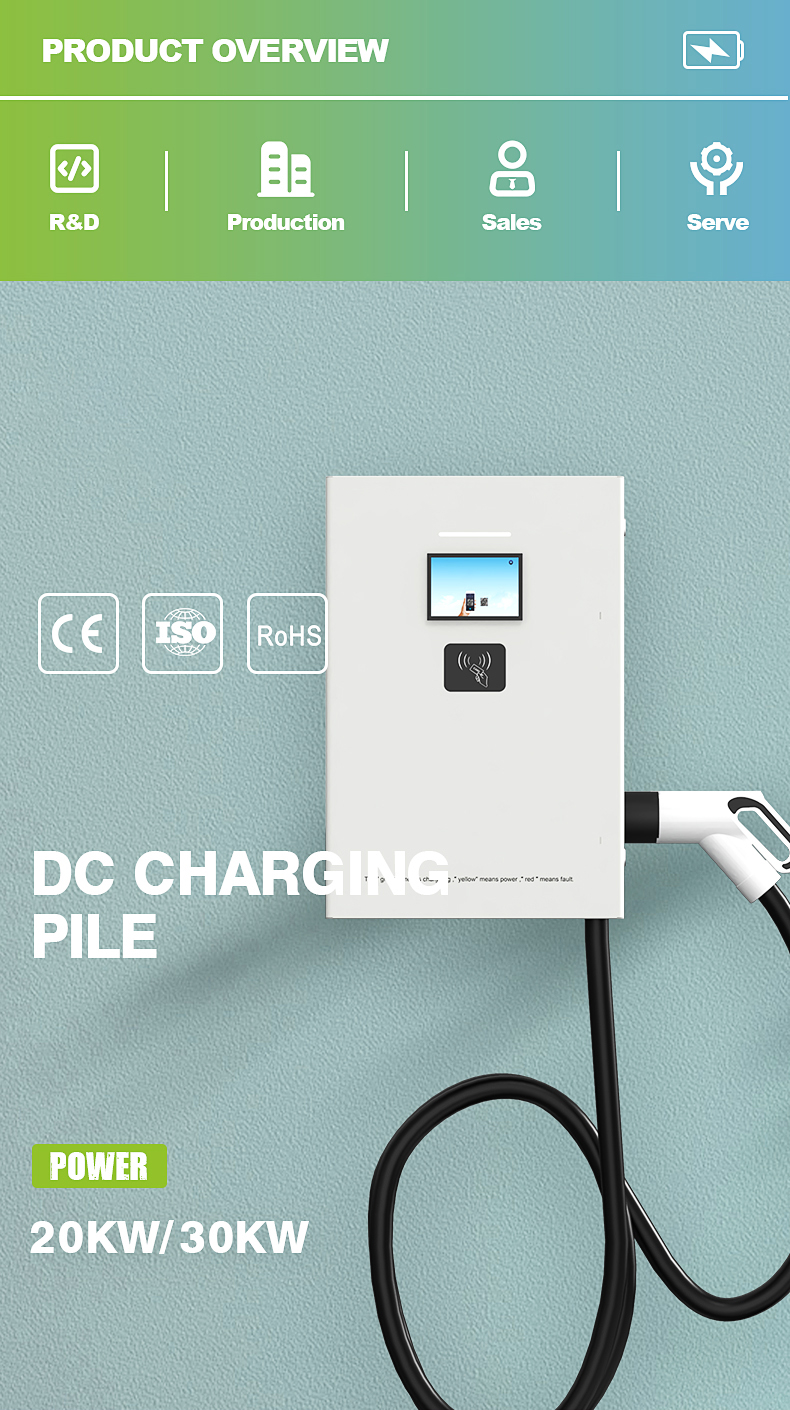

30KW DC Wallbox EV Charging Station
● Convenient installation: Wall-mounted/Floor-mounted
● High efficiency, reliable and stable performance
● Friendly interaction interface, 7’’color touch screen(Optional)
● Support OCPP1.6J/Ethernet/3G/4G/WIFI/Bluetooth telecommunication(optional)

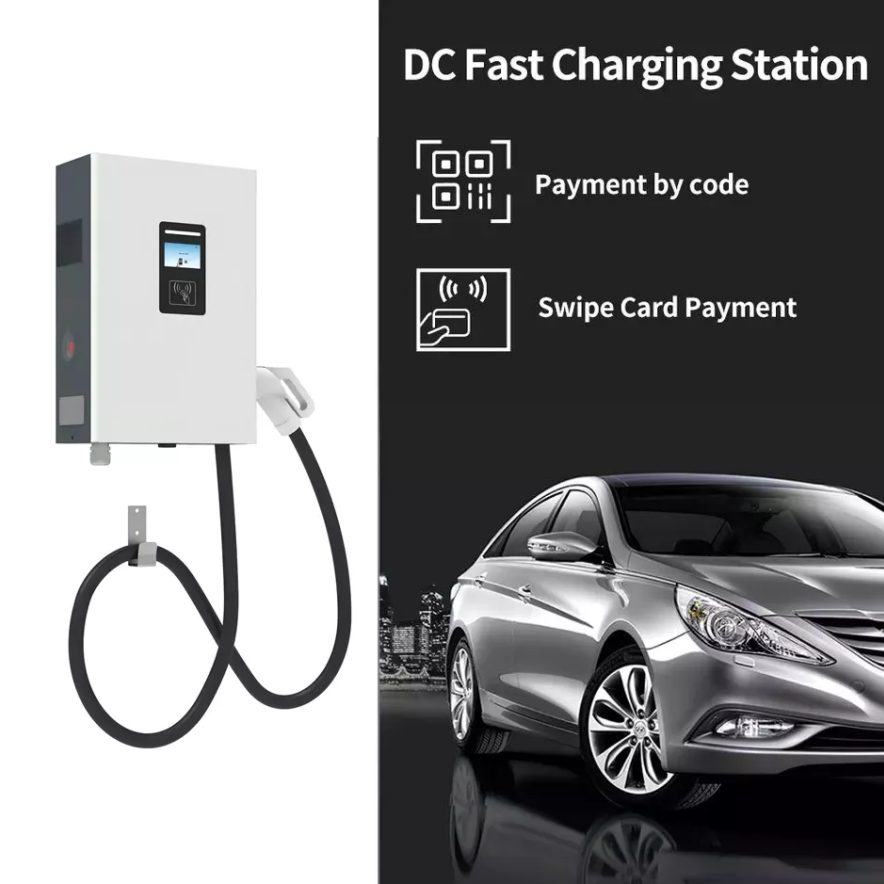

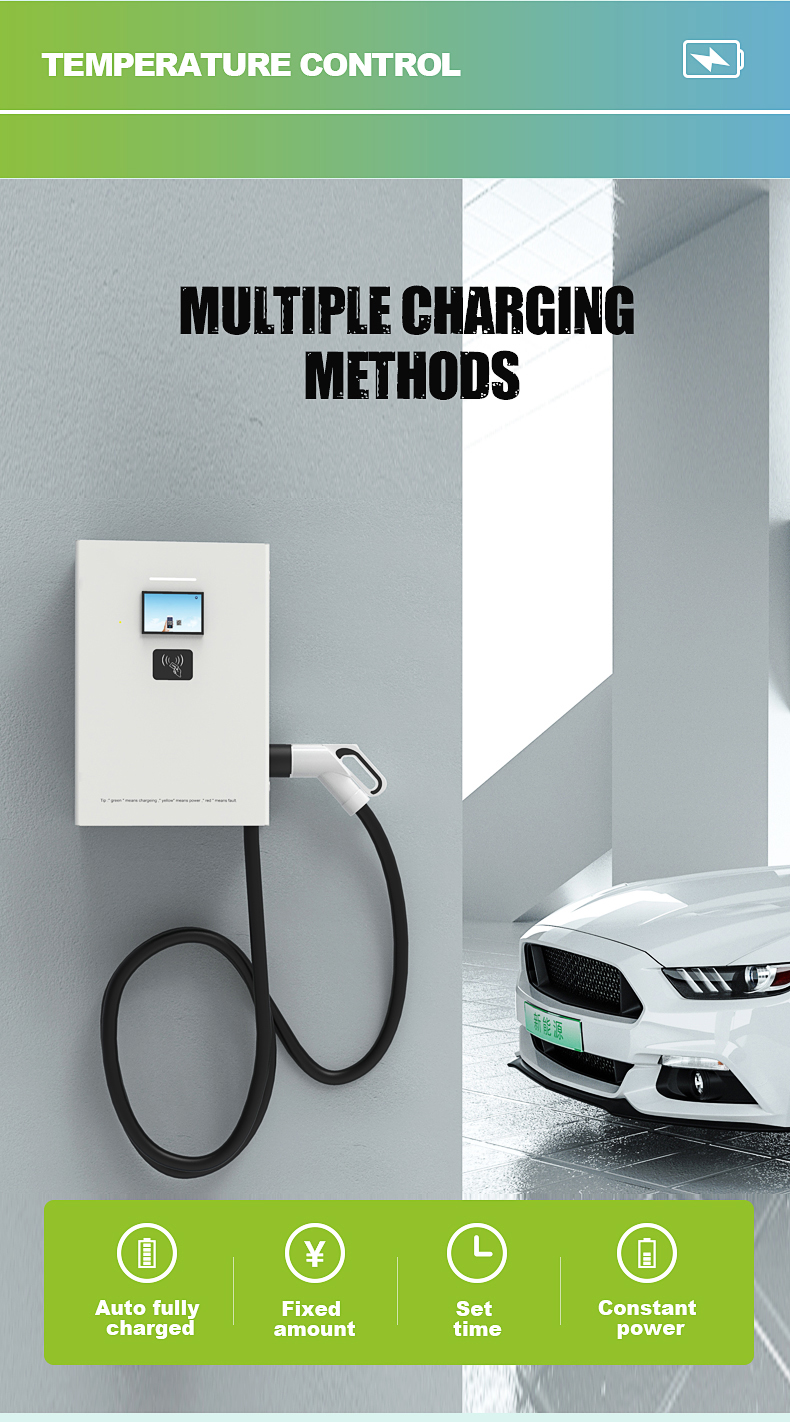

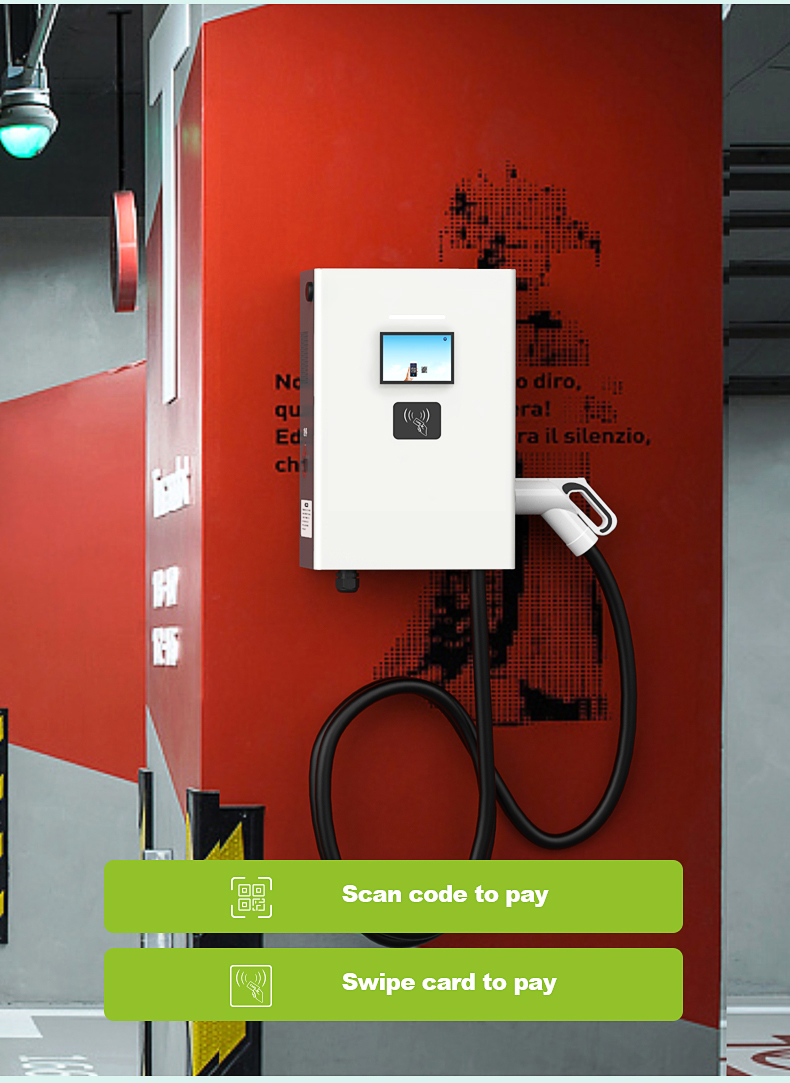

● Support Swipe card/ Scan QR code/input password to charge (optional)

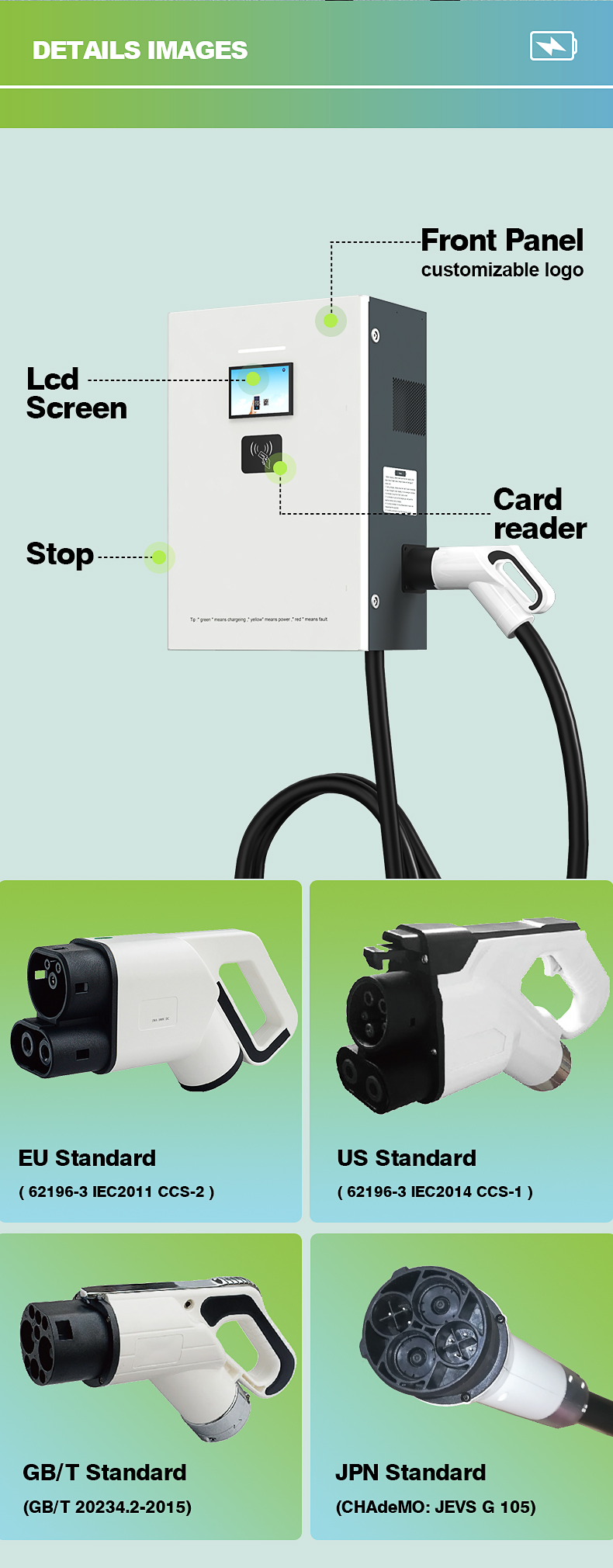

● Support type1,type2 ,Chademo,GB/T connector(or socket)optional;
● Protection Grade: IP54 ,IK10
● Support online data upgrade
● Fully adapting to all electric vehicles in the market
● Logo,color ,function ects can be customizable
●CE ,ROSH Certified
- Description
- Technical Data
- Download
- Video
Model | GN-ENCDC020K | GN-ENCDC030K | ||
Power Input | Input Type | 3-Phase | ||
Input Wiring Scheme | 3P+N+PE | |||
Rated Voltage | AC380V±15% | |||
Min. Power Factor | ≥0.99(50% load above) | |||
Related Current | 0-60A | |||
Grid Frequency | 50Hz or 60Hz | |||
Power Output | Output Voltage | DC 200V~1000V | ||
Maximum Current | 0-80A | 0-125A | ||
Rated Power | 20KW | 30KW | ||
User Interface | Charge Connector | CCS1 ,CCS 2 ,GB/T or ChadeMo for optional | ||
Cable Length | 5m or Optional | |||
LED Indicator | Green/Blue/Red | |||
LCD Display | 7 Inch Touch Color Screen(Optional) | |||
RFID Reader | ISO/IEC 14443 RFID Card Reader | |||
Start Mode | Plug&Charge/RFID Card/APP | |||
Communication | Backend | Bluetooth / Wi-Fi /Cellular(Optional) / Ethernet(Optional) | ||
Charging protocol | OCPP-1.6J | |||
Safety and Certification | Energy Metering | Embedded Meter Circuit Component With 1% accuracy | ||
Residual Current Device | DC 6mA+Type A AC 30mA | |||
Ingress Protection | IP54 | |||
Impact Protection | IK10 | |||
Cooling method | Natural Cooling | |||
Electrical Protection | Over/Under Voltage Protection,Over Current Protection, Short Circuit protection, Over/Under Temperature Protection,Lightning Protection,Ground Protection | |||
Certification | CE Rosh | |||
Certification and Conformity | IEC61851-1,IEC62196-1/-2,SAE J1772 | |||
Environment | Mounting | Wall-mount/Pole-mount | ||
Storage Temperature | -40℃ - +85℃ | |||
Operating Temperature | -30℃ - +50℃ | |||
Max. Operating Humidity | 0-95%，Non-condensing | |||
Max. operating altitude | 2000m | |||

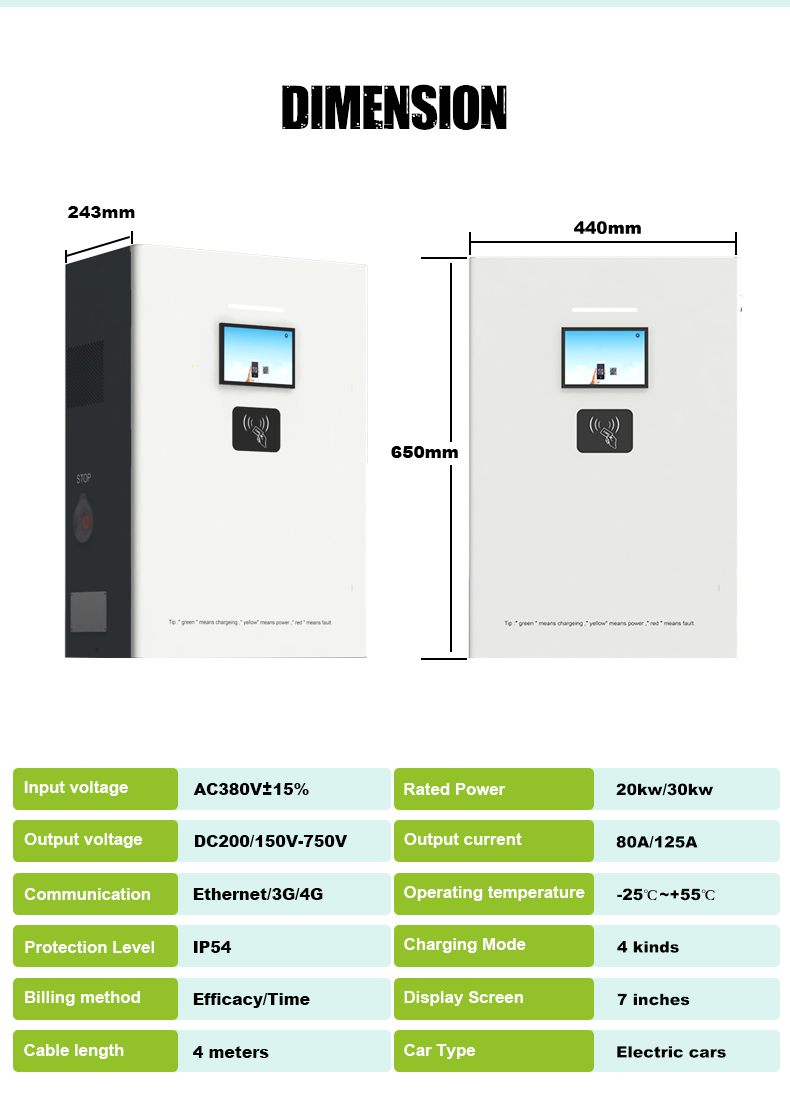

Mechanical | Product Dimension | 650mm*440mm*267.5mm（W*D*H） | ||
Package Dimension | 900mm*540mm*430mm（W*D*H） | |||
Number of guns | 1 or 2 | |||
Accessory | Cable Holder,Pedestal(Optional) | |||
