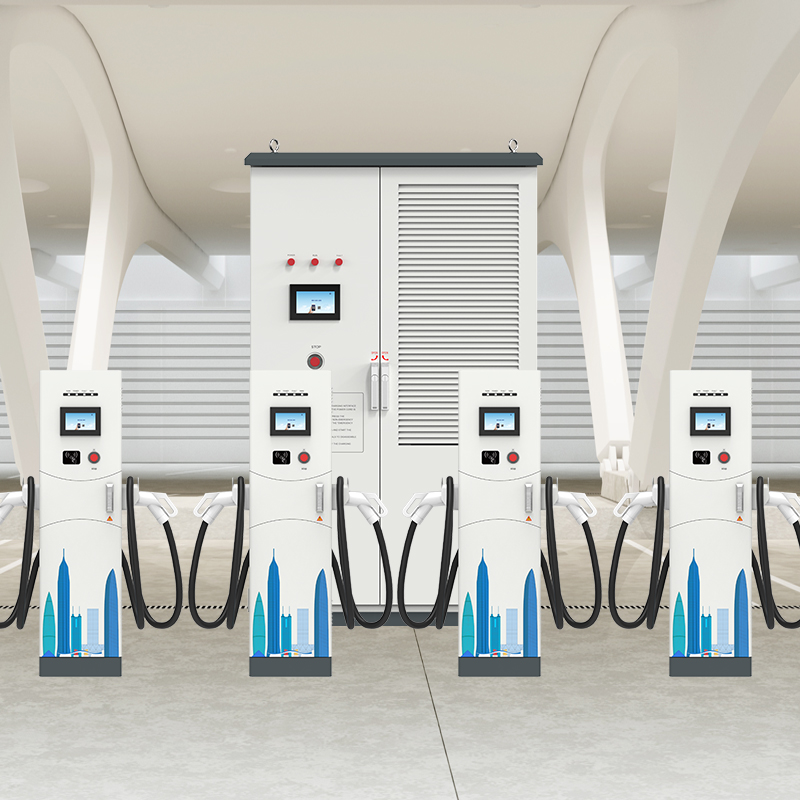

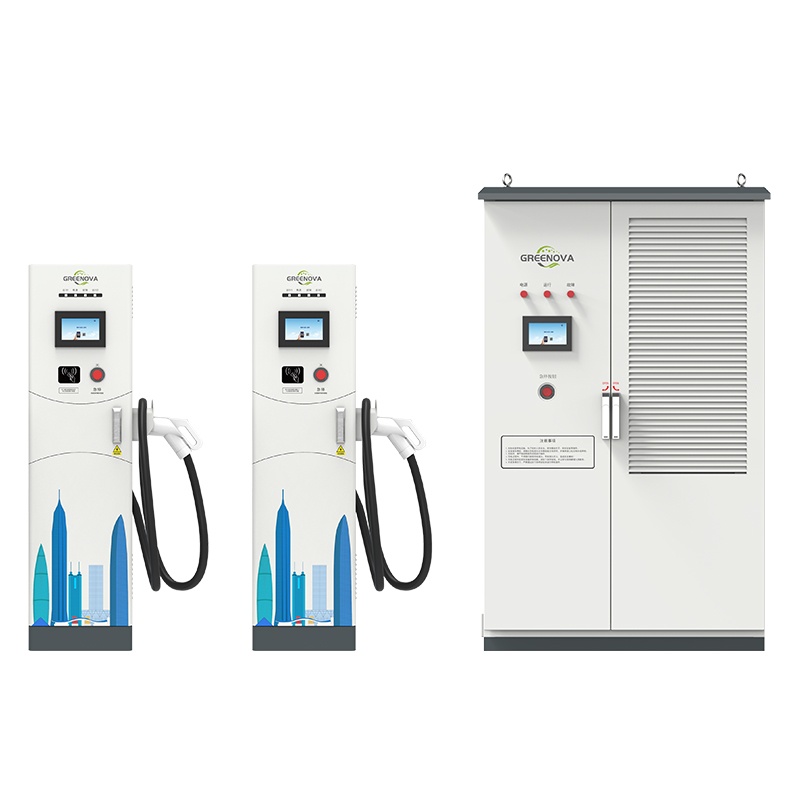

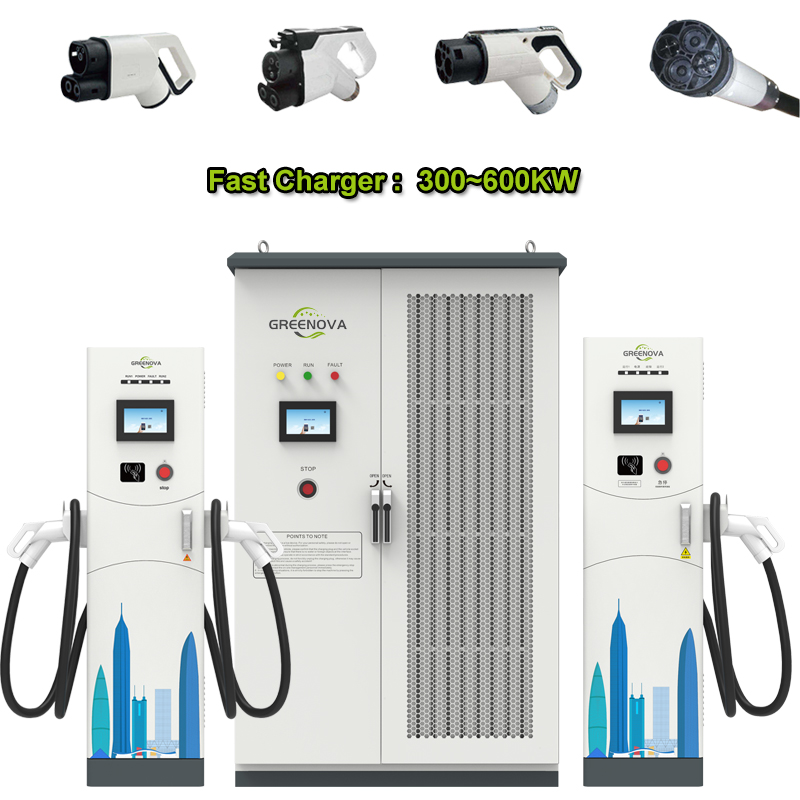

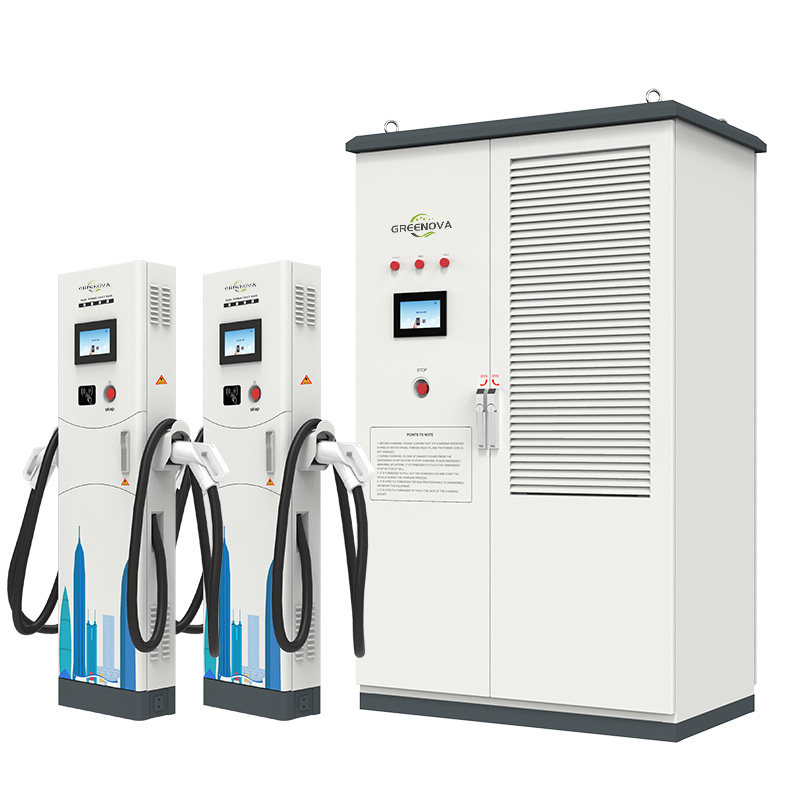

240-480KW Split Type DC Fast DC EV Charging Station
● Convenient installation: Ground mounted
● High efficiency, reliable and stable performance
● Friendly interaction interface, 7’’ color touch screen(Optional)
● Support OCPP1.6J/Ethernet/3G/4G/WIFI/Bluetooth telecommunication(optional)
● Support Swipe card/ Scan QR code/input password to charge (optional)
● Support IEC62196 CCS-2 connector/socket (optional)
● Protection Grade: IP54 ,IK10
● Support online data upgrade
● Fully adapting to all electric vehicles in the market

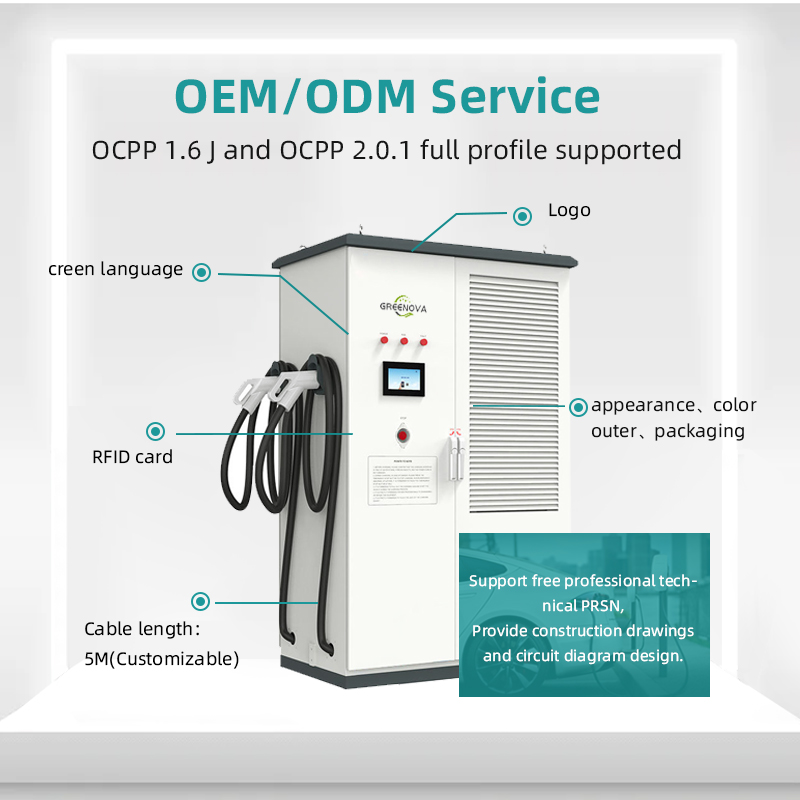

● Logo,color ,function ects can be customizable
●CE ,ROSH Certified
- Description
- Technical Data
- Download
- Video

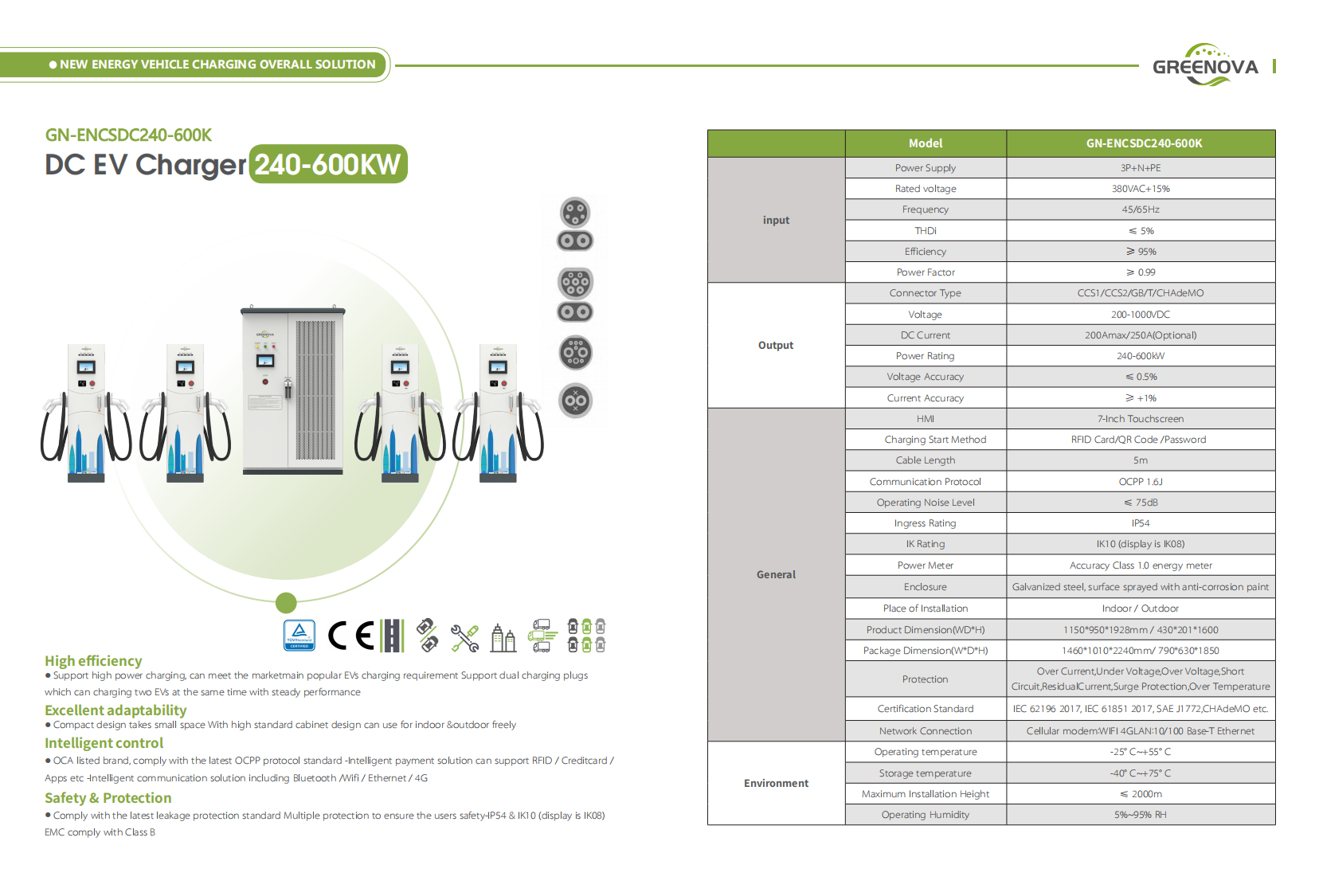

Model | GN-ENCDCLF360K | GN-ENCDCLF480K | |||
Power Input | Input Type | 3-Phase | |||
Input Wiring Scheme | 3P+N+PE | ||||
Rated Voltage | AC380V±15% | ||||
Min. Power Factor | ≥0.99(50% load above) | ||||
Grid Frequency | 50Hz or 60Hz | ||||
Power Output | Output Voltage | DC 200V~1000V | |||
Maximum Current | 0-200A | ||||
Rated Power | 360KW | 480KW | |||

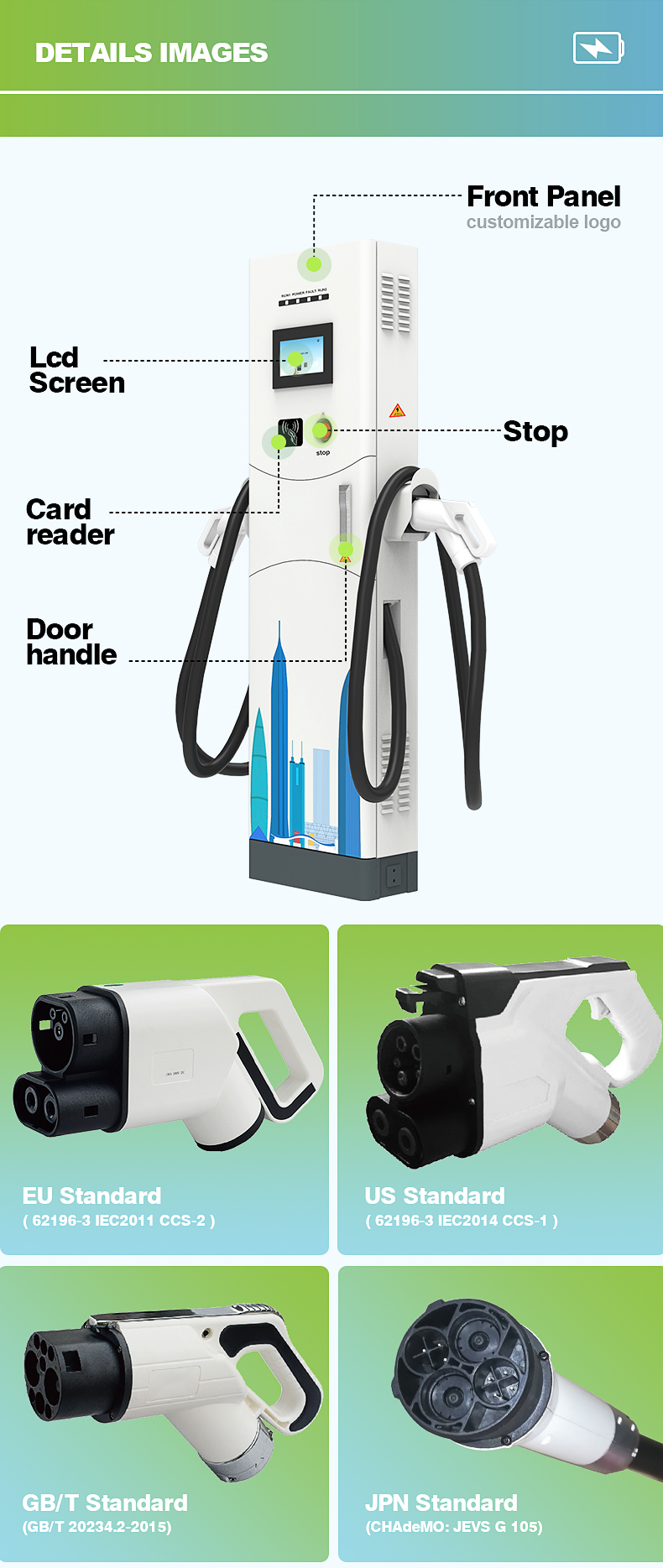

User Interface | Charge Connector | CCS1 ,CCS2 ,GB/T or ChadeMo for optional | |||
Cable Length | 5m or Optional | ||||
LED Indicator | Green/Blue/Red | ||||
LCD Display | 7 Inch Touch Color Screen(Optional) | ||||
RFID Reader | ISO/IEC 14443 RFID Card Reader | ||||
Start Mode | Plug&Charge/RFID Card/APP | ||||
Communication | Backend | Bluetooth / Wi-Fi /Cellular(Optional) / Ethernet(Optional) | |||
Charging protocol | OCPP-1.6J | ||||
Safety and Certification | Energy Metering | Embedded Meter Circuit Component With 1% accuracy | |||
Residual Current Device | DC 6mA+Type A AC 30mA | ||||
Ingress Protection | IP54 | ||||
Impact Protection | IK10 | ||||
Cooling method | Air Cooling | ||||
Electrical Protection | Over/Under Voltage Protection,Over Current Protection, Short Circuit protection, Over/Under Temperature Protection,Lightning Protection,Ground Protection | ||||
Certification | CE Rosh | ||||
Certification and Conformity | IEC61851-1,IEC62196-1/-2,SAE J1772 | ||||
Environment | Mounting | Floor Mount | |||
Storage Temperature | -40℃ - +85℃ | ||||
Operating Temperature | -30℃ - +50℃ | ||||
Max. Operating Humidity | 0-95%，Non-condensing | ||||
Max. operating altitude | 2000m | ||||

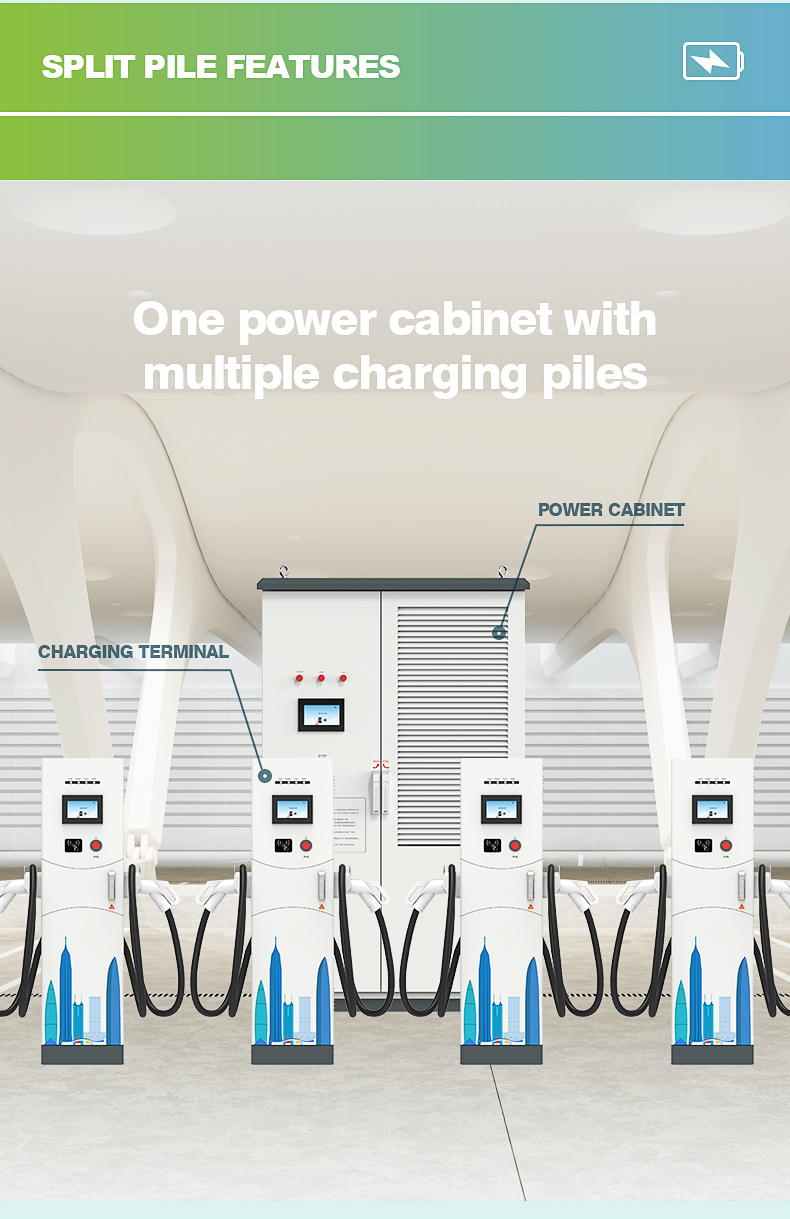

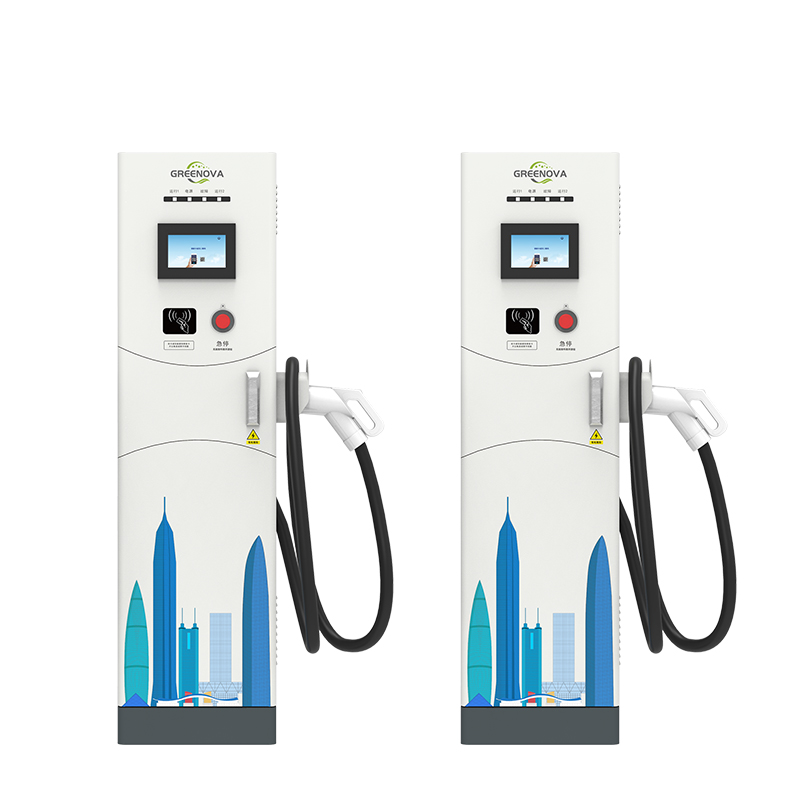

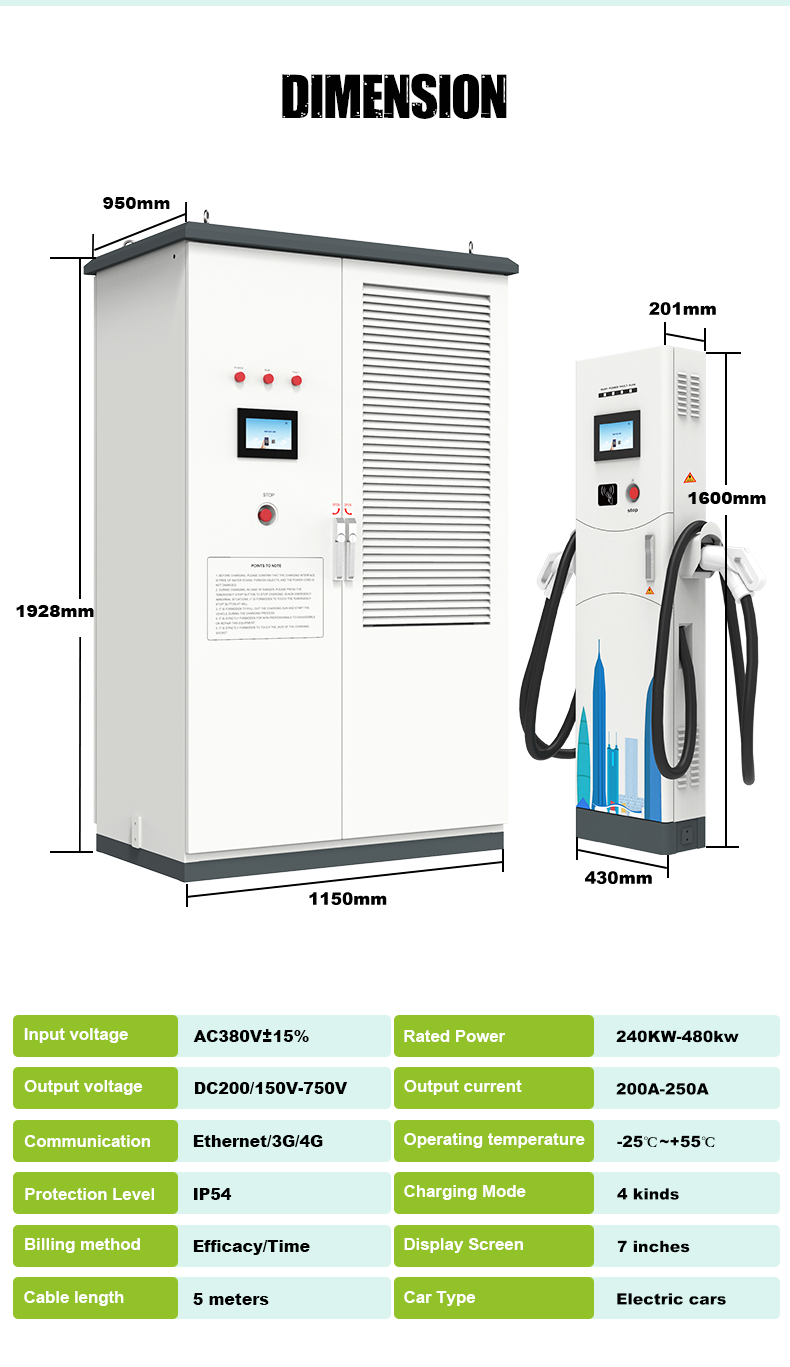

Mechanical | Product Dimension | Main Cabinet :1250mm*800mm*1982mm ; terminal Cabinet: 430mm*201mm*1600mm（W*D*H） | |||
Package Dimension | Main Cabinet :1370mm*920mm*2185mm ; terminal Cabinet: 744mm*584mm*1780mm（W*D*H） | ||||
Connector Terminal | 3 or 4 | ||||
Number of Guns | 6 or 8 | ||||
Accessory | Cable Holder,Pedestal(Optional) | ||||
