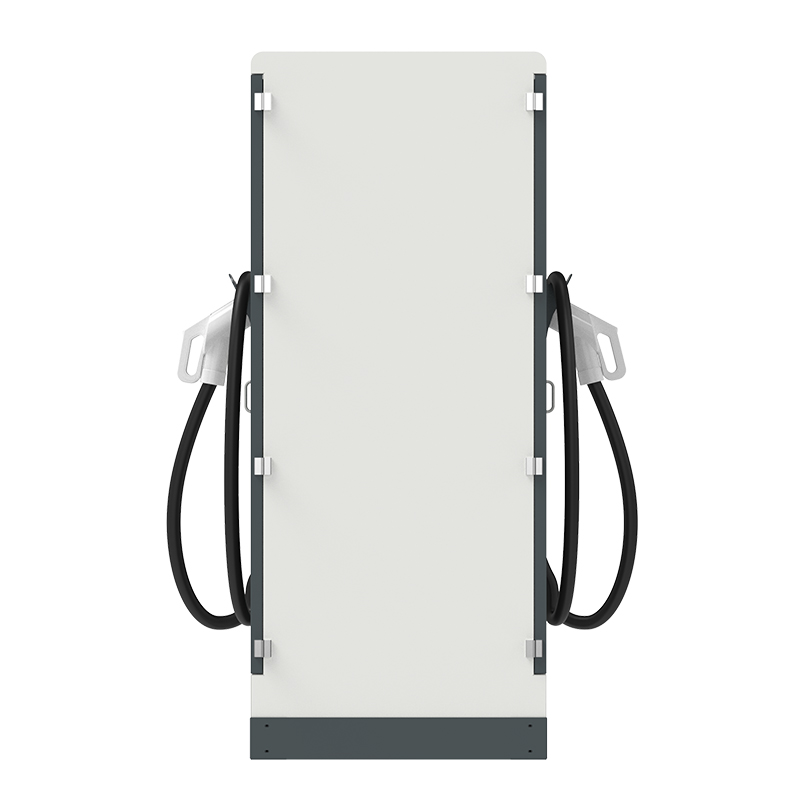

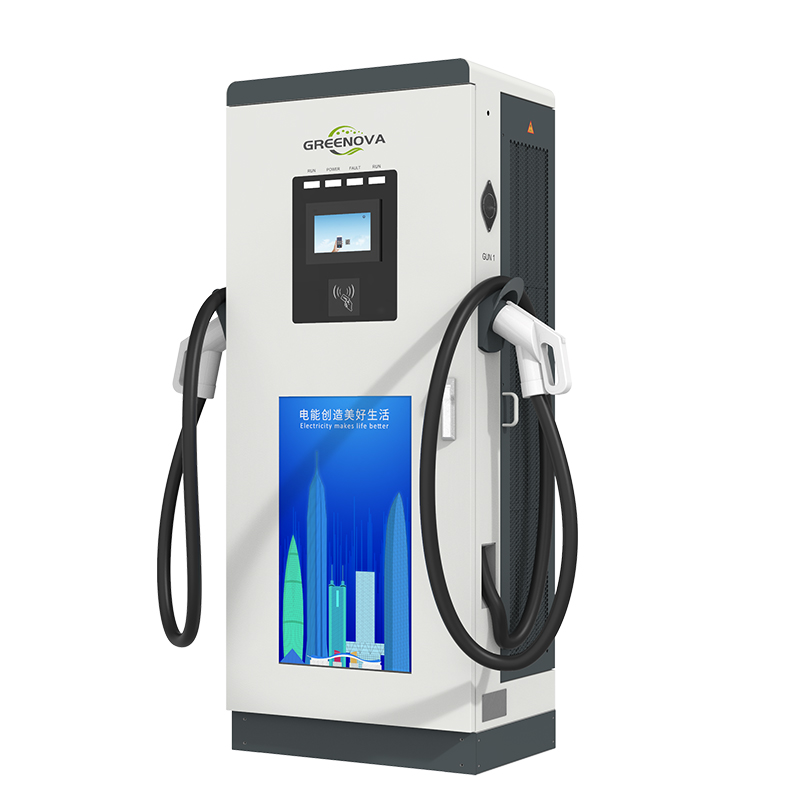

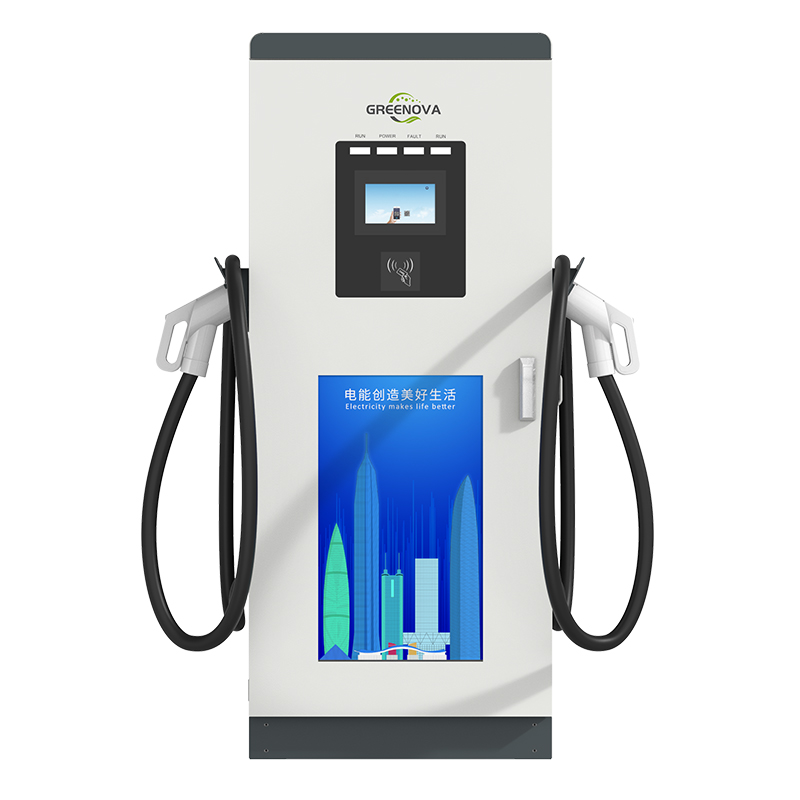

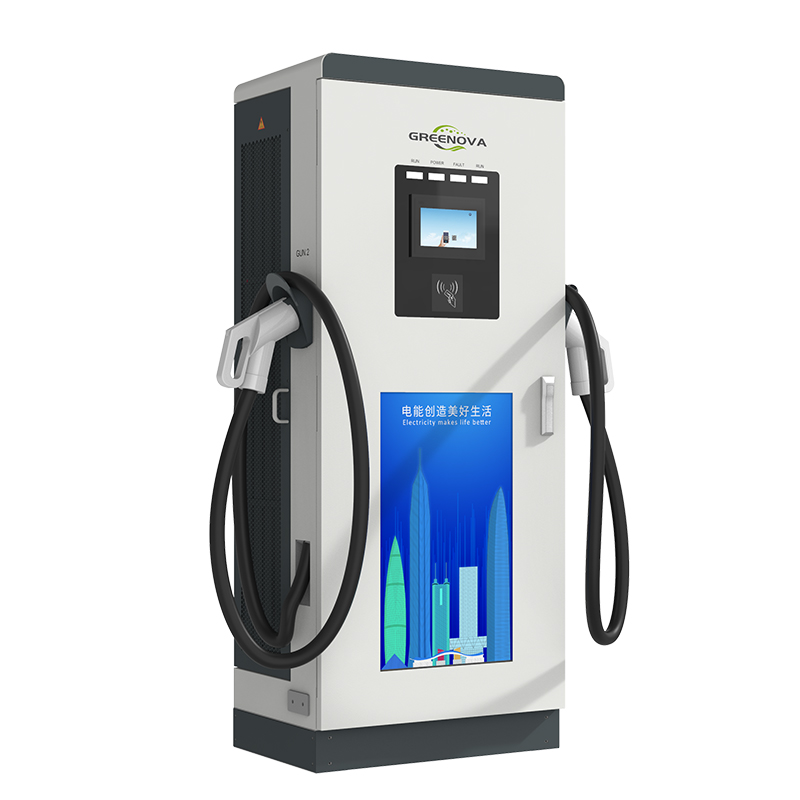

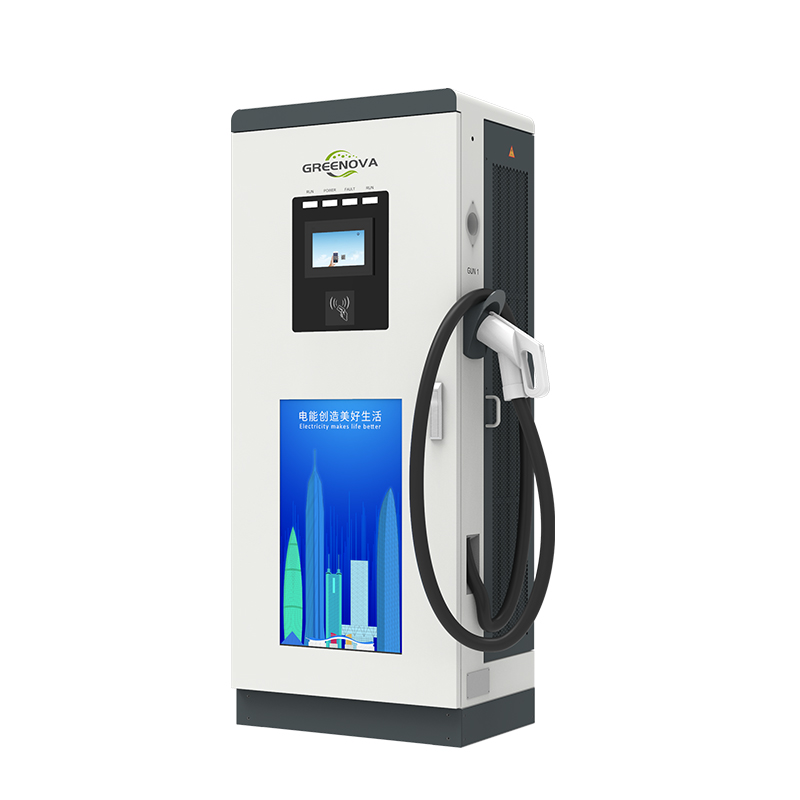

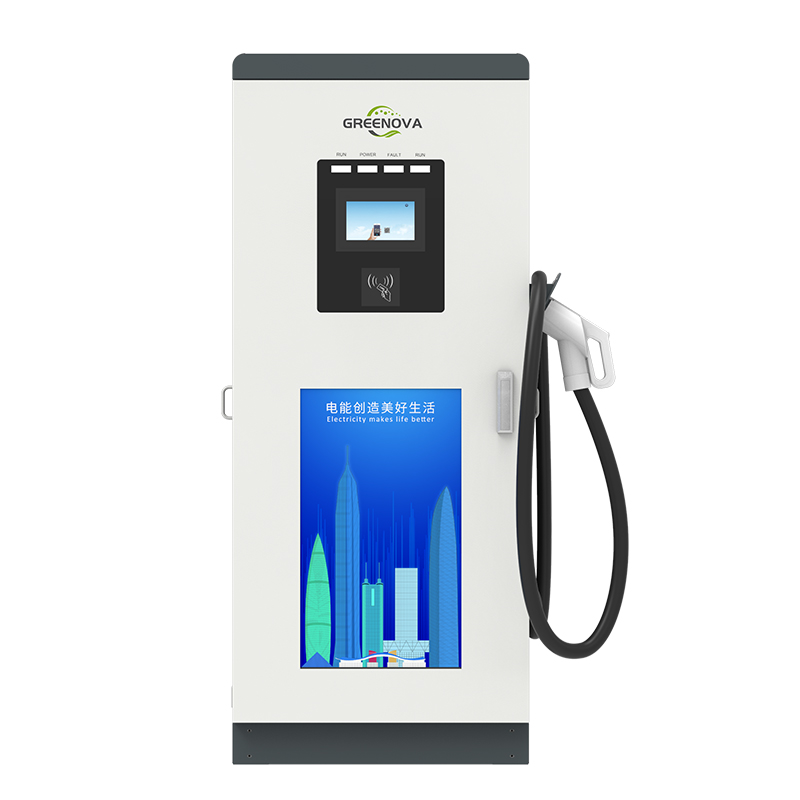

60KW-120KW DC Fast EV Charging Station

60KW-120KW DC Fast EV Charging Station

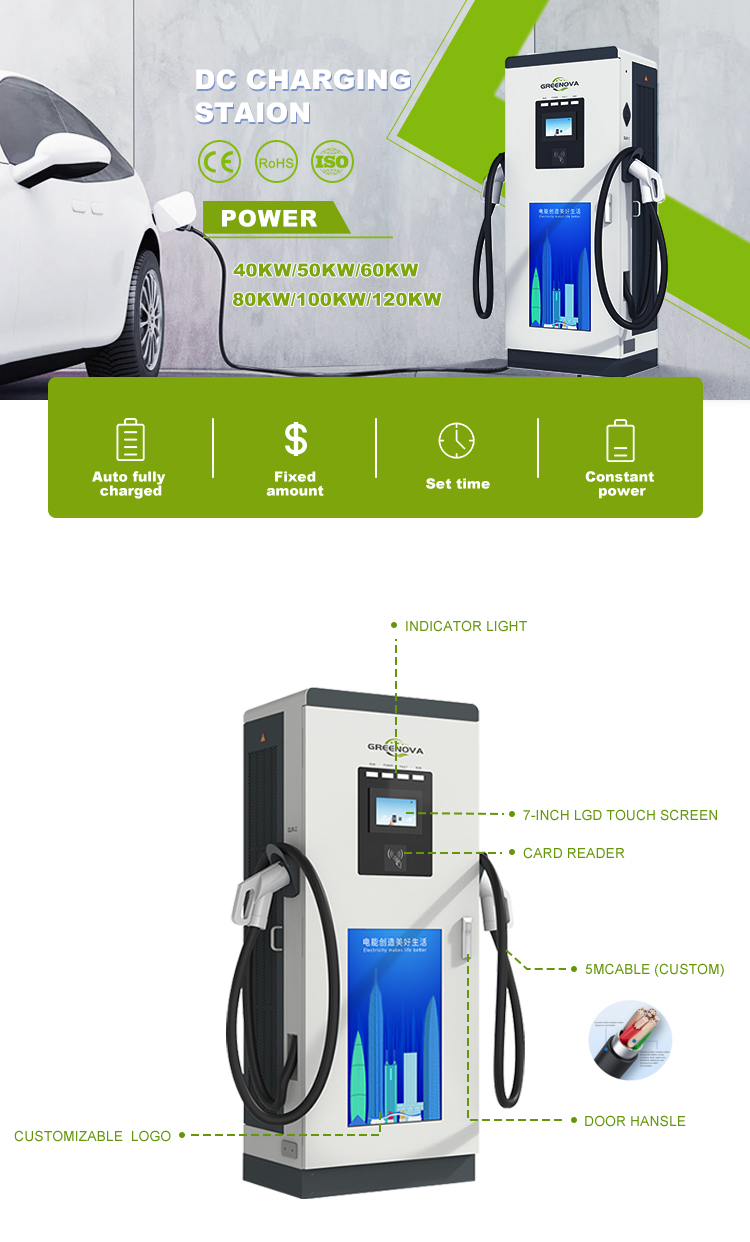

● Delicate appearance, simple operation, convenient installation


● High efficiency,reliable and stable performance


● Friendly interaction interface,7-inch color touch screen


● Support multiple modes of charging, operation management and payment


● Support 3G/4G, Ethernet or wireless telecommunication


● Support RFID Card/OCPP 1.6J (optional)

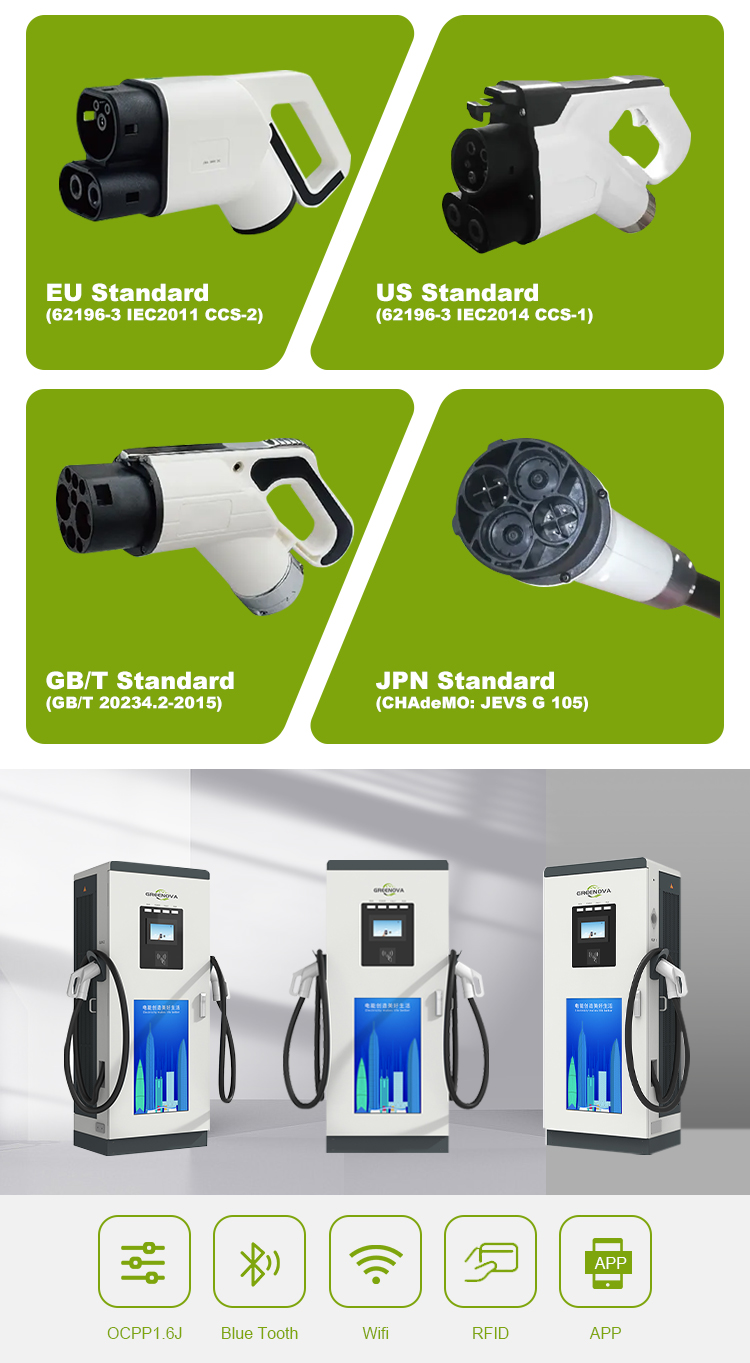

● Support CCS-2/CCS-1/CHAdeMO/GB/T connector(or Socket)optional


● Protection Grade: IP54 ,IK10


● Support online data upgrade


● Fully adapting to all electric vehicles in the market


● Logo,color ,function ects can be customizable


CE ,ROSH Certified


  • Description
  • Technical Data
  • Download
  • Video

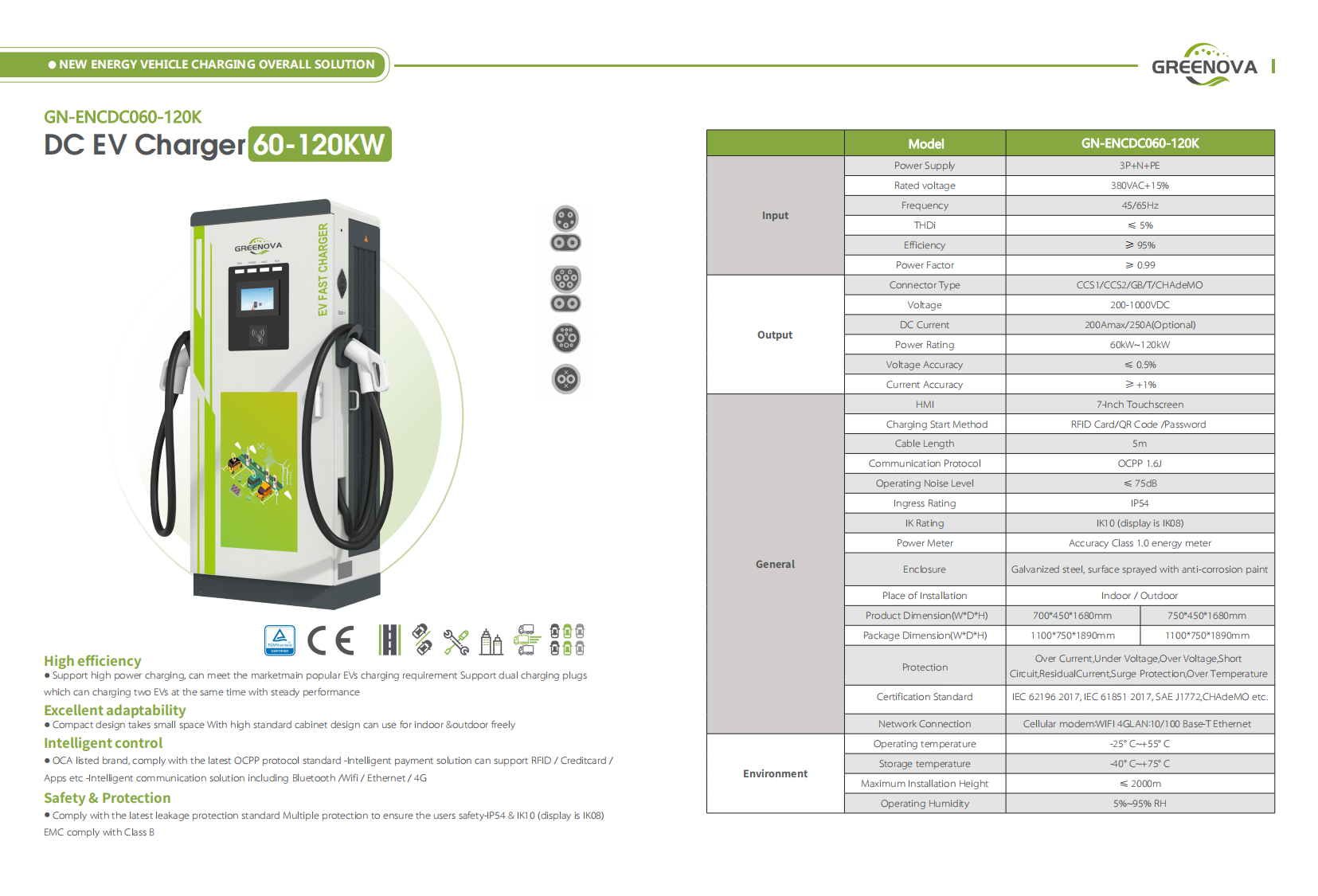

Model

GN-ENCDC060K

GN-ENCDC080K

GN-ENCDC120K

Power Input

Input Type

3-Phase

Input Wiring Scheme

3P+N+PE

Rated Voltage

    AC380V±15%

Min. Power Factor

≥0.99(50% load above)

Grid Frequency

     50Hz or 60Hz

Power Output

Output Voltage

     DC 200V~1000V

Maximum Current

0-200A

Rated Power

60KW

80KW

120KW

User Interface

Charge Connector

CCS1 ,CCS2 ,GB/T or ChadeMo for optional

Cable Length

5m or Optional

LED Indicator

Green/Blue/Red

LCD Display

7 Inch Touch Color Screen(Optional)

RFID Reader

ISO/IEC 14443 RFID Card Reader

Start Mode

Plug&Charge/RFID Card/APP

Communication

Backend

Bluetooth / Wi-Fi /Cellular(Optional) / Ethernet(Optional)

Charging protocol

OCPP-1.6J

Safety and Certification

Energy Metering

Embedded Meter Circuit Component With 1% accuracy

Residual Current Device

DC 6mA+Type A AC 30mA

Ingress Protection

IP54

Impact Protection

IK10

Cooling method

Air Cooling

Electrical Protection

Over/Under Voltage Protection,Over Current Protection, Short Circuit protection, Over/Under Temperature Protection,Lightning Protection,Ground Protection

Certification

CE Rosh

Certification and Conformity

IEC61851-1,IEC62196-1/-2,SAE J1772

Environment

Mounting

Floor Mount

Storage Temperature

-40℃ - +85℃

Operating Temperature

-30℃ - +50℃

Max. Operating Humidity

0-95%Non-condensing

Max. operating altitude

2000m

Mechanical

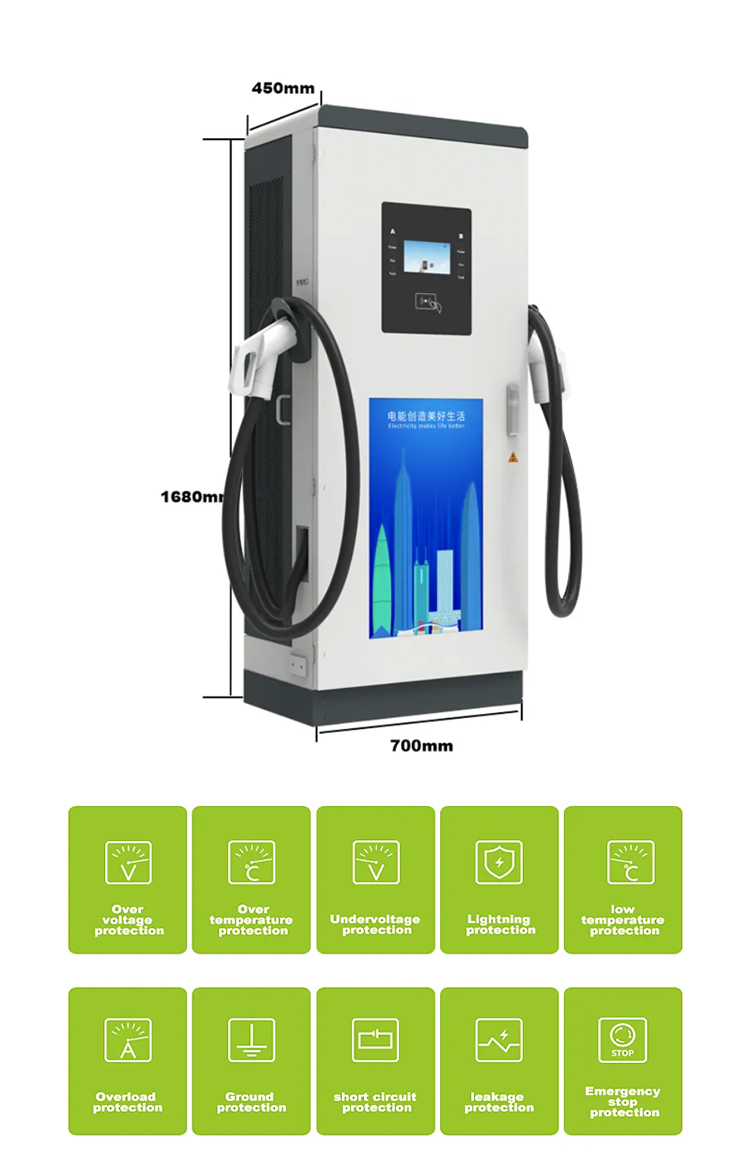

Product Dimension

1680mm*700mm*450mmW*D*H

Package Dimension

1850mm*1050mm*685mmW*D*H

Number of guns

1 or 2

Accessory

Cable Holder,Pedestal(Optional)
